Motorola XTS2500 UHF 380-470 MHz FPP P25 AES-256 Covert Military H46QDH9PW7BN

Communications Protocol: Digital (Conventional)

Memory: 8 MB

Use: Two-Way Radio

Custom Bundle: No

Color: Black

Service: P25

Band: UHF

MPN: Xts2500,XTS 2500

Brand: Motorola

Type: Handheld

Number of Channels: 870

Wireless Range: 380-470 MHz

Model: XTS 2500

Features: FPP Front Panel Programming,Automatic Noise Limiter (ANL),Channel Monitor,CTCSS,DCS,GPS,Repeater,Room Monitor

Country/Region of Manufacture: Malaysia

Power: 5 Watts

Product Line: ASTRO25

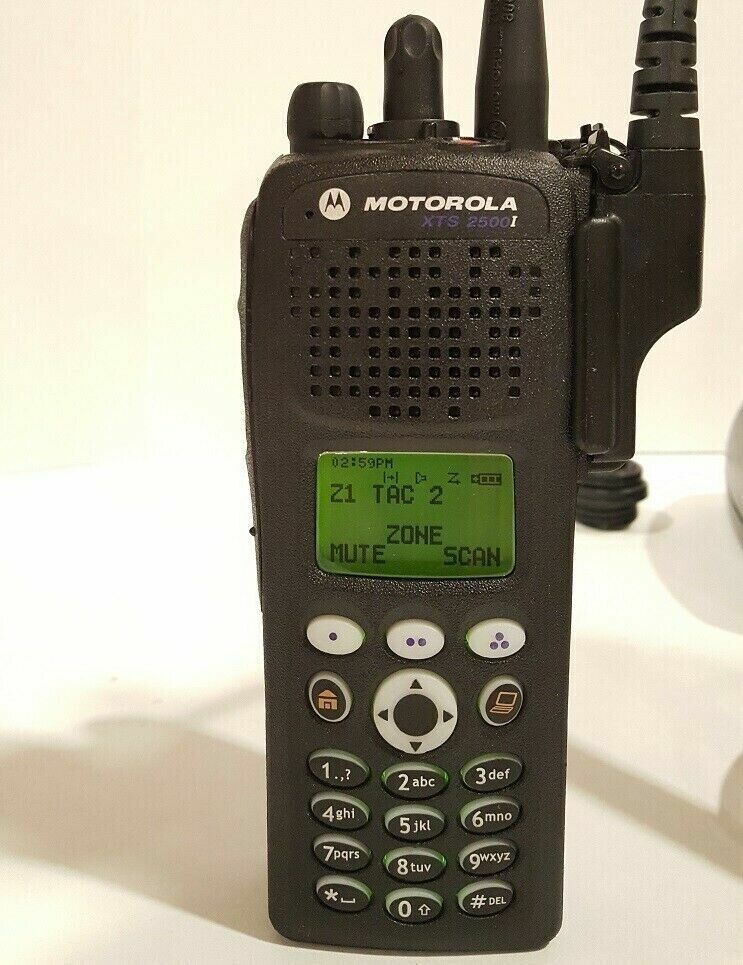

MOTOROLA XTS2500i UHF 380-470 MHz FPP Covert Military Digital Two-Way Radio

Previously used by U.S.M.C.

Also known as AN/PRC-153 Radio Set and have special covert features used with night vision.

The backlight is set very low dim, is only visible with a night vision headset and the PTT light on top is disabled.

Tested, works perfect and has a new black housing. Original factory tags with upgraded options.

Includes radio, charger, battery, belt clip, antenna    mic is NOT included

Deprogrammed to factory default channels and settings, There are no passwords set.

Free shipping or local pickup.

Host Version R20.50.10

DSP Version R19.50.01

Secure Version ADP, AES 256

Crypto Unit: Internal COMSEC (Type II)

Tuning Version R01.08.12

BRAVO122 Processor

Band UHFL

UHF R1 380-470 MHz

870 Channels

Channel Spacing 12.5/25 kHz

Maximum Frequency Separation - Full Bandsplit

Rated RF Output Power 1 to 5 Watts (Low / High)

• PTT button
• On/Off volume knob
• Programmable orange emergency button
• 16-position top mounted rotary knob
• 3-position concentric switch
• Programmable monitor button
• 2 programmable side buttons
• Transmit LED indicator
• Dial from pre-stored lists
• Programmable soft key
• Backlit Keypad
• 3 soft keys
• 3 navigation keys
• Large bitmap display
• Time / Date
• Caller ID
• Utilizes Windows-Based Customer Programming Software (CPS)
• Supports USB and RS-232 communications
• Built in FLASHport support
• Intrinsically Safe
• Meets Military Specs 810 C, D, E and F

Narrow and wide bandwidth digital receiver

Embedded digital signaling (ASTRO & ASTRO 25)

Enhanced Audio Features – High quality, error corrected digital voice – Noise Reduction Software – Audio Gain Control

Factory Installed FLASHport Options

	Q806				ASTRO IMBE Digital Operation
	Q52				Federal Government FPP
	H869				Hardware Multikey Encryption
	H35				Conventional Systems Operation
	H02				Encrypted Tactical Inhibit
	Q947				APCO Packet Data Interface
	Q53				FCC FPP And Radio Cloning
	Q387				Conventional Voting Scan
