MOTOROLA XTS2500 III UHF 380-470 MHz P25 Digital Two-Way Radio H46QDH9PW7BN XTS

Number of Channels: 870

Model: XTS2500

Product Line: ASTRO25

Band: UHF

Type: Portable/Handheld

Communications Protocol: APCO Project 25 (P25)

Features: Digital,Analog,Conventional,Trunking,Wideband,Narrowband,Automatic Noise Limiter (ANL),Channel Monitor,CTCSS

Memory: 8 MB

Color: Brown

MPN: H46QDH9PW7BN

Use: Two-Way Radio

Service: P25

Wireless Range: 1-25 Miles

Power: 5 Watts

Brand: Motorola

MOTOROLA XTS2500i UHF 380-470 MHz Military Police Fire EMS Digital Two-Way Radio

Previously used by U.S.M.C.

Also known as AN/PRC-153 Radio Set and have special covert features used with night vision.

The backlight is set very low dim, is only visible with a night vision headset and the PTT light on top is disabled.

Tested, works perfect and has a new housing. Original factory tags with upgraded options.

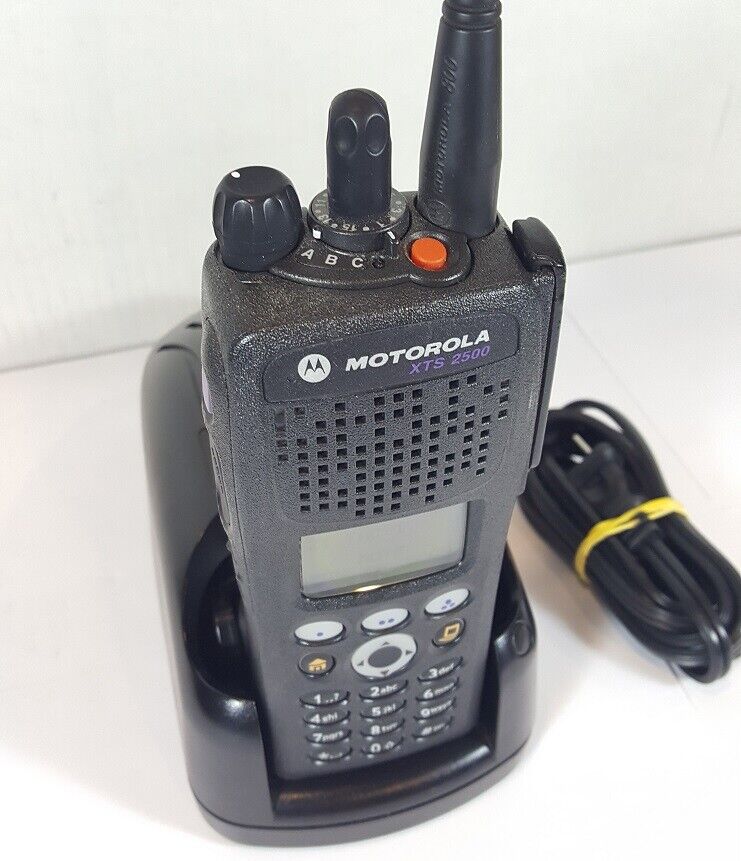

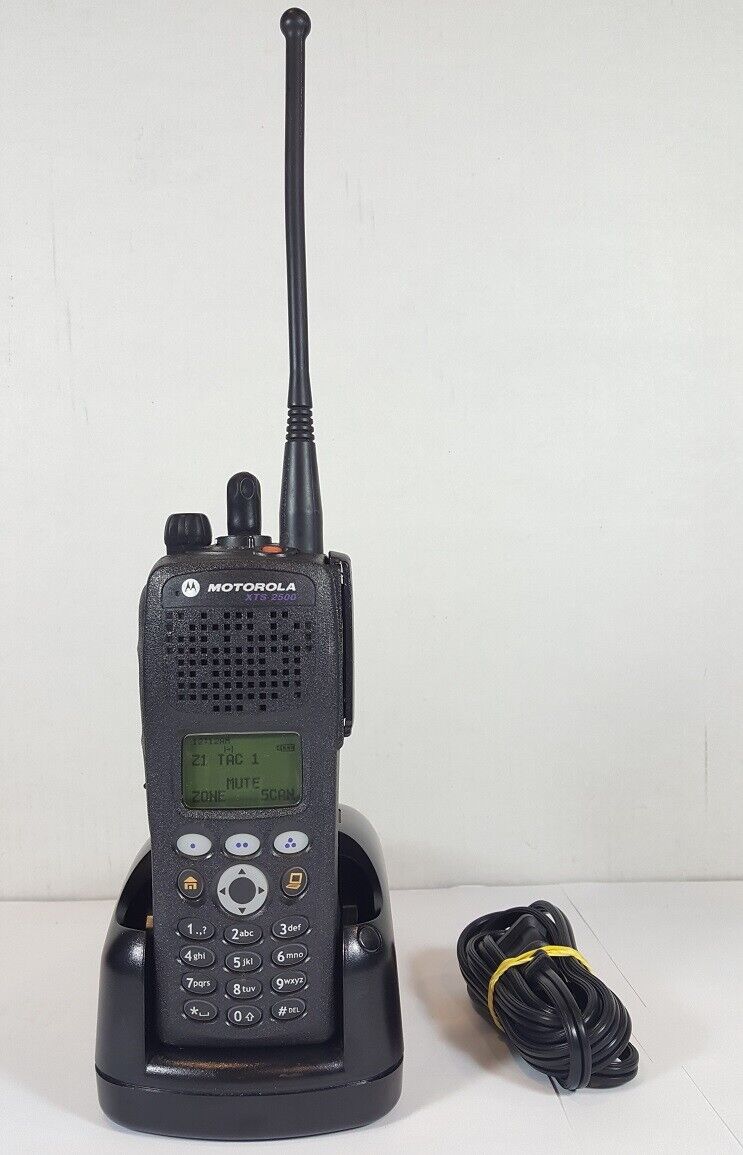

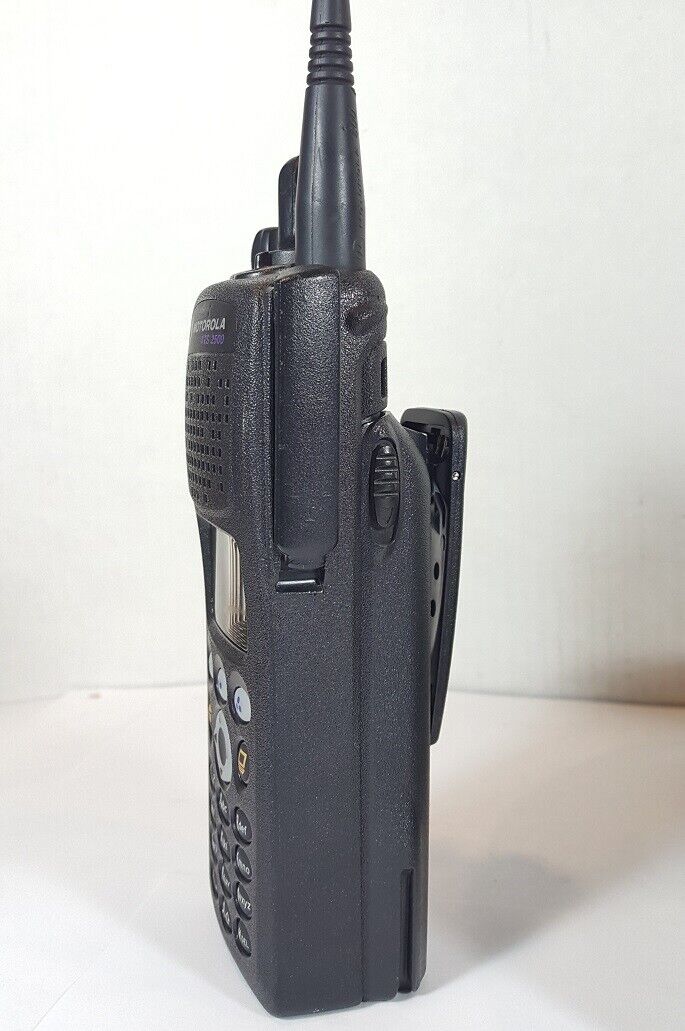

Includes radio, charger, battery, belt clip and antenna

Deprogrammed to factory default channels and settings, There are no passwords set.

Free shipping or local pickup.

Host Version R20.50.10

DSP Version R19.50.01

Secure Version ADP, AES 256

Crypto Unit: Internal COMSEC (Type II)

Tuning Version R01.08.12

BRAVO122 Processor

Band UHFL

UHF R1 380-470 MHz

Channel Spacing 12.5/25 kHz

Maximum Frequency Separation - Full Bandsplit

Rated RF Output Power 1 to 5 Watts (Low / High) Power

870 Channels

• PTT button
• On/Off volume knob
• Programmable orange emergency button
• 16-position top mounted rotary knob
• 3-position concentric switch
• Programmable monitor button
• 2 programmable side buttons
• Transmit LED indicator
• Dial from pre-stored lists
• Programmable soft key
• Backlit Keypad
• 3 soft keys
• 3 navigation keys
• Large bitmap display
• Time / Date
• Caller ID
• Utilizes Windows-Based Customer Programming Software (CPS)
• Supports USB and RS-232 communications
• Built in FLASHport support
• Intrinsically Safe
• Immersible Housing
• Meets Military Specs 810 C, D, E and F

Trunking standards supported – APCO Project 16 (3600 control channel) and – APCO Project 25 (9600 control channel)

System configurations – ASTRO Analog and Digital Trunking with Mutual Aid and – ASTRO25 Digital Trunking with Mutual Aid

Narrow and wide bandwidth digital receiver

Embedded digital signaling (ASTRO & ASTRO 25)

Enhanced Audio Features – High quality, error corrected digital voice – Noise Reduction Software – Audio Gain Control

Installed FLASHport Options

	Q806				ASTRO IMBE Digital Operation
	H14				Enhanced Digital ID Display
	H43				Trunked Remote Monitor/Radio Trace
	H46				Trunked One Touch Status Message
	Q883				3600/9600 Interoperability/Mixed Mode Signalling
	G996				Over the Air Provisioning
	H38				SmartZone Systems Operation
	Q947				APCO Packet Data Interface
	Q387				Conventional Voting Scan
	Q173				SmartZone Omnilink MultiZone Operation
	Q361				ASTRO 25 9600 Baud Trunking
	Q667				ADP Software Encryption
	Q574				9600 Baud Trunking
