MOTOROLA XTS2500 III UHF 380-470 MHz P25 Digital Two-Way Radio H46QDH9PW7BN AES

Communications Protocol: APCO Project 25 (P25)

Memory: 8 MB

Use: Two-Way Radio

Color: Brown

Service: P25

Band: UHF

MPN: H46QDH9PW7BN

Brand: Motorola

Type: Portable/Handheld

Number of Channels: 870

Wireless Range: 1-25 Miles

Model: XTS2500

Features: Digital,Analog,Conventional,Trunking,Wideband,Narrowband,Automatic Noise Limiter (ANL),Channel Monitor,CTCSS

Power: 5 Watts

Product Line: ASTRO25

Previously used by U.S.M.C.

Also known as AN/PRC-153 Radio Set and have special covert features used with night vision.

The backlight is set very low dim, is only visible with a night vision headset and the PTT light on top is disabled.

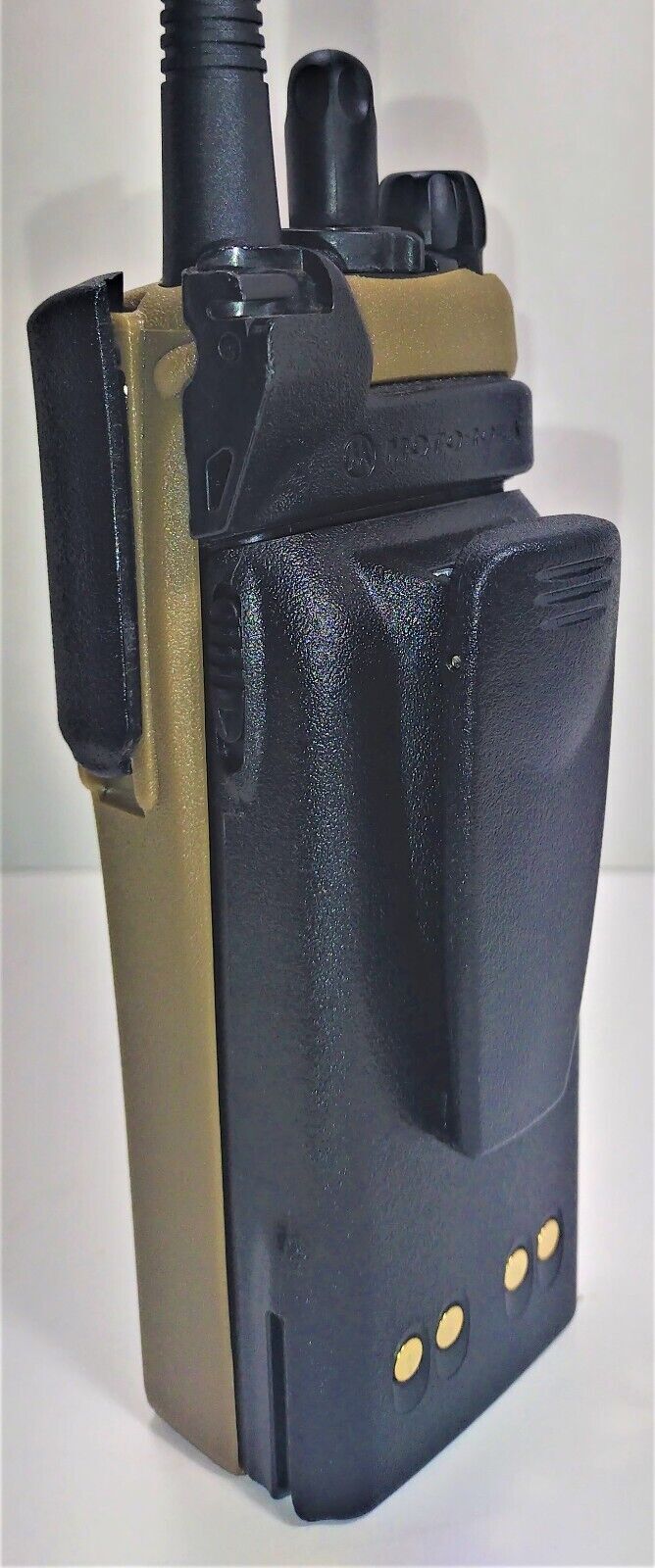

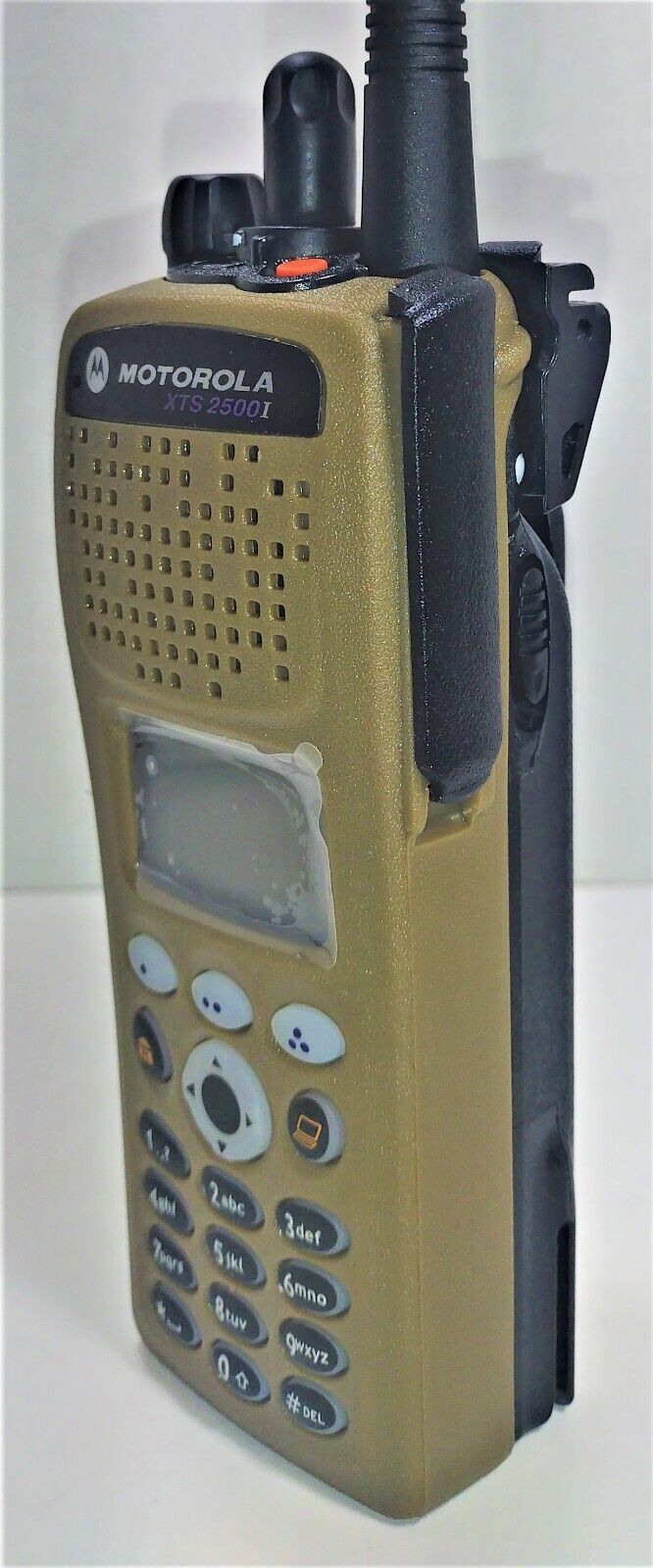

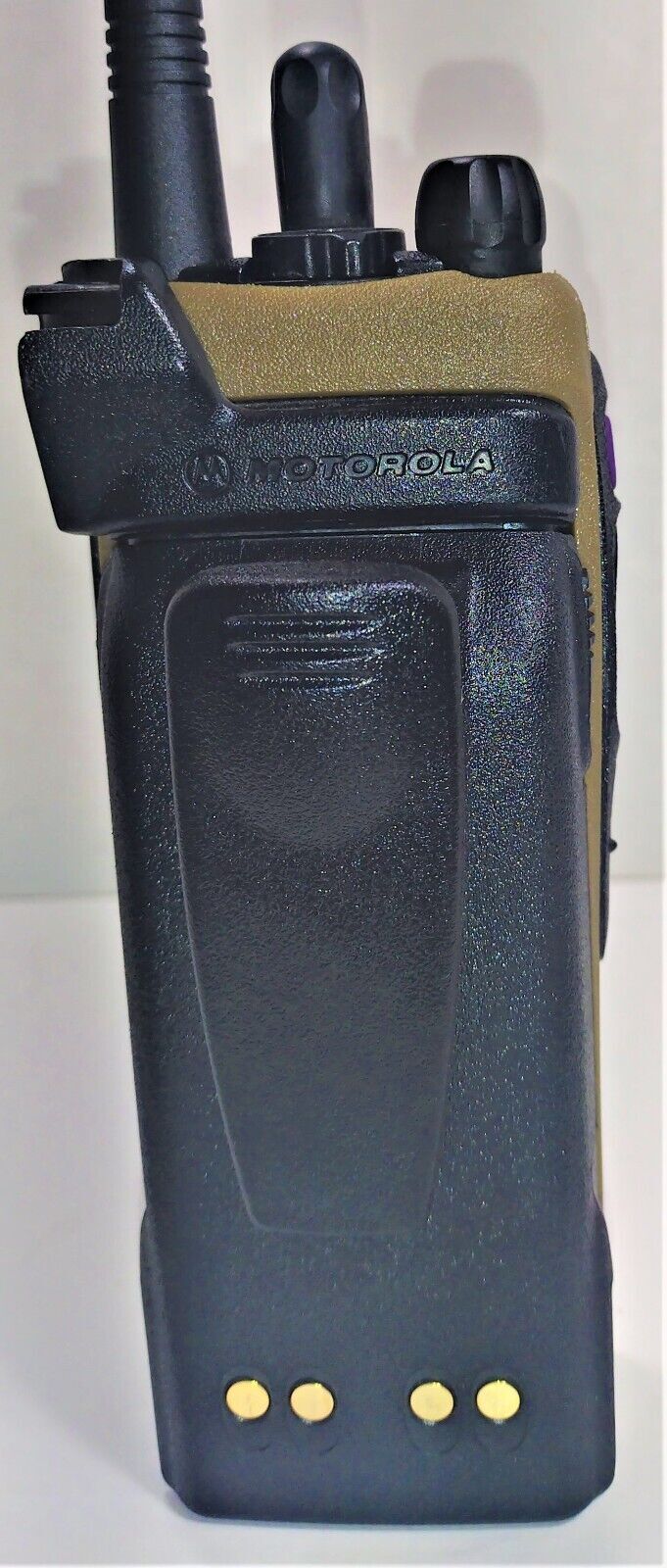

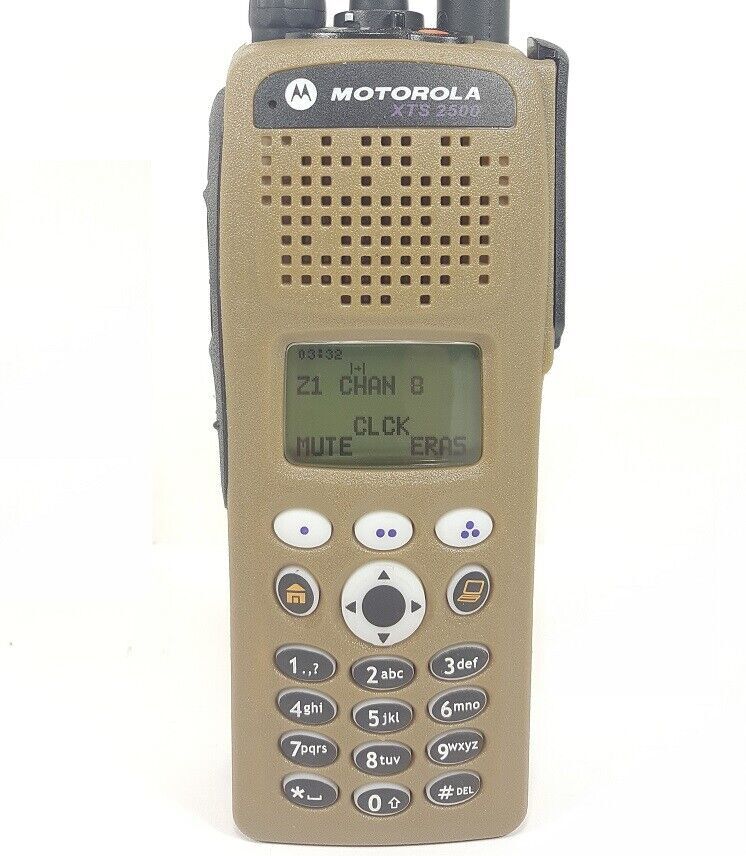

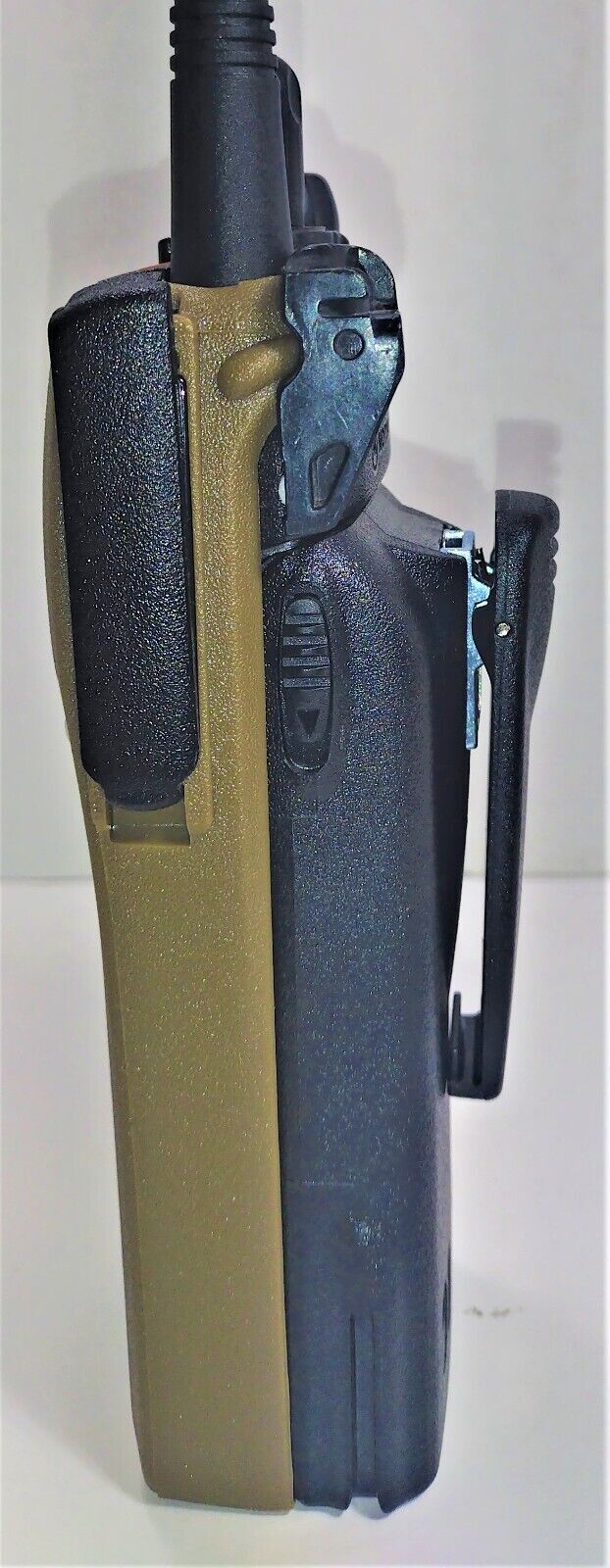

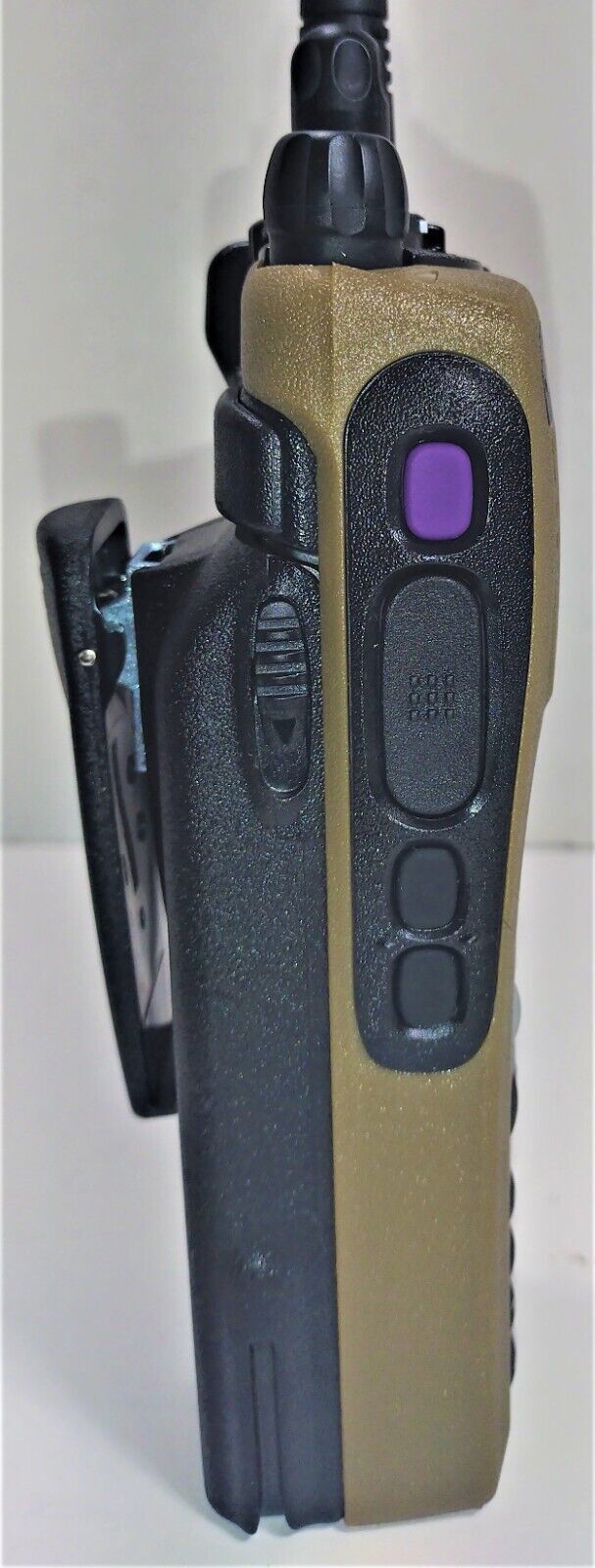

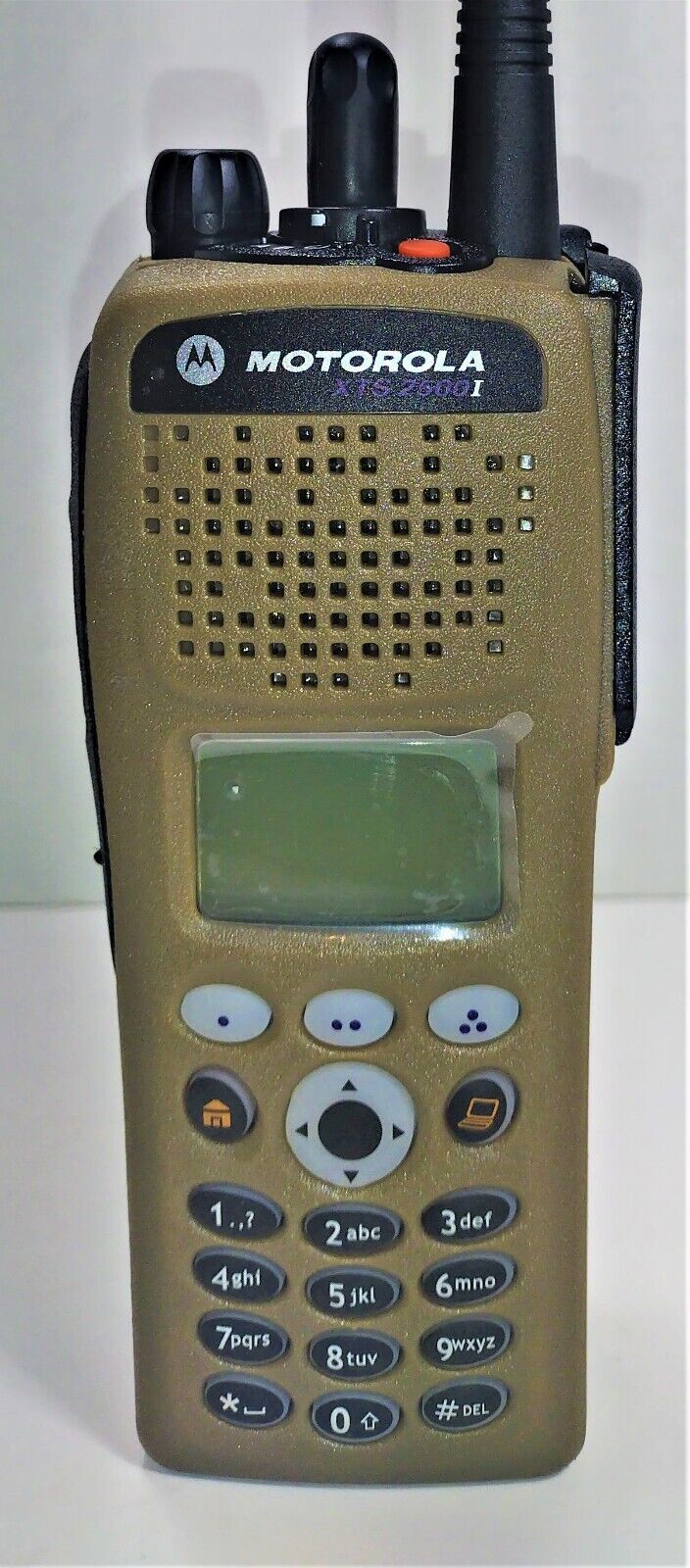

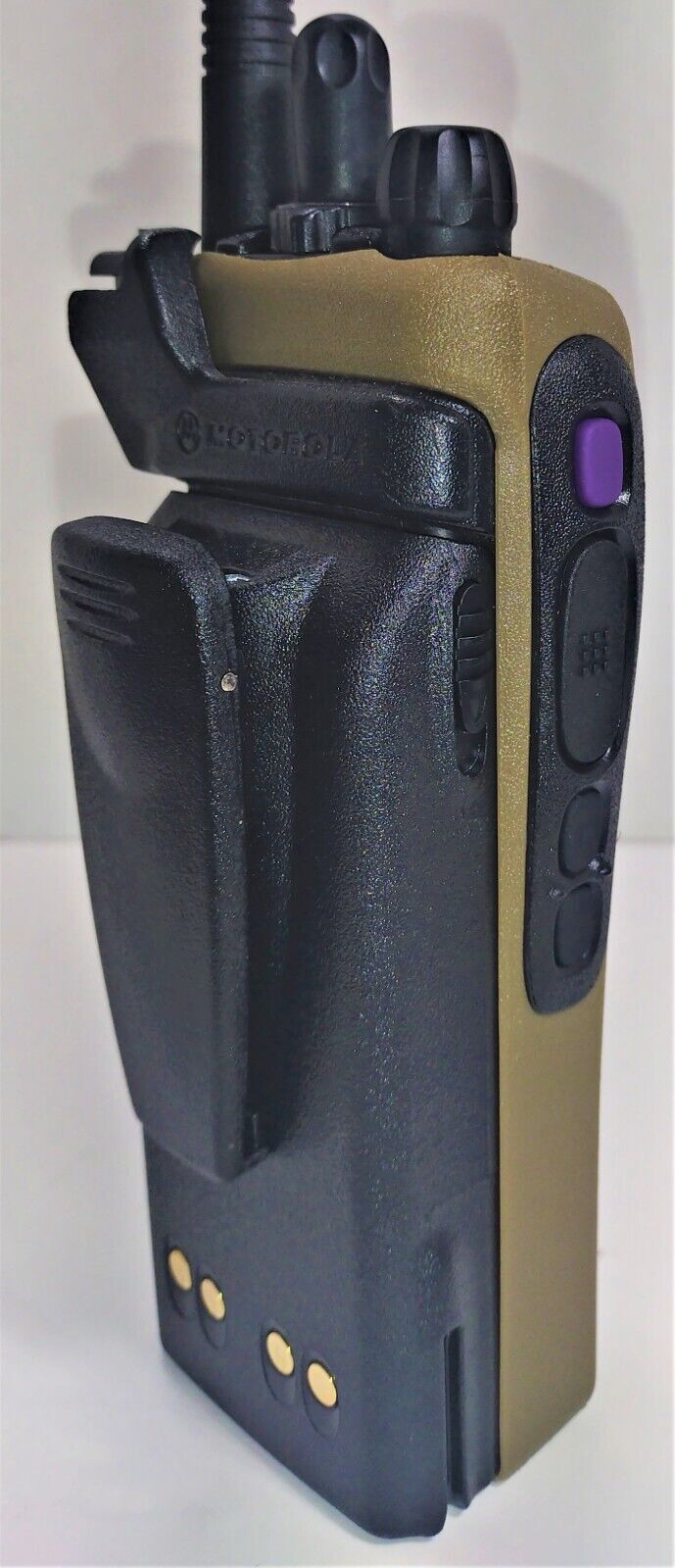

Tested, works perfect and has a new brown housing. Original factory tags with upgraded options.

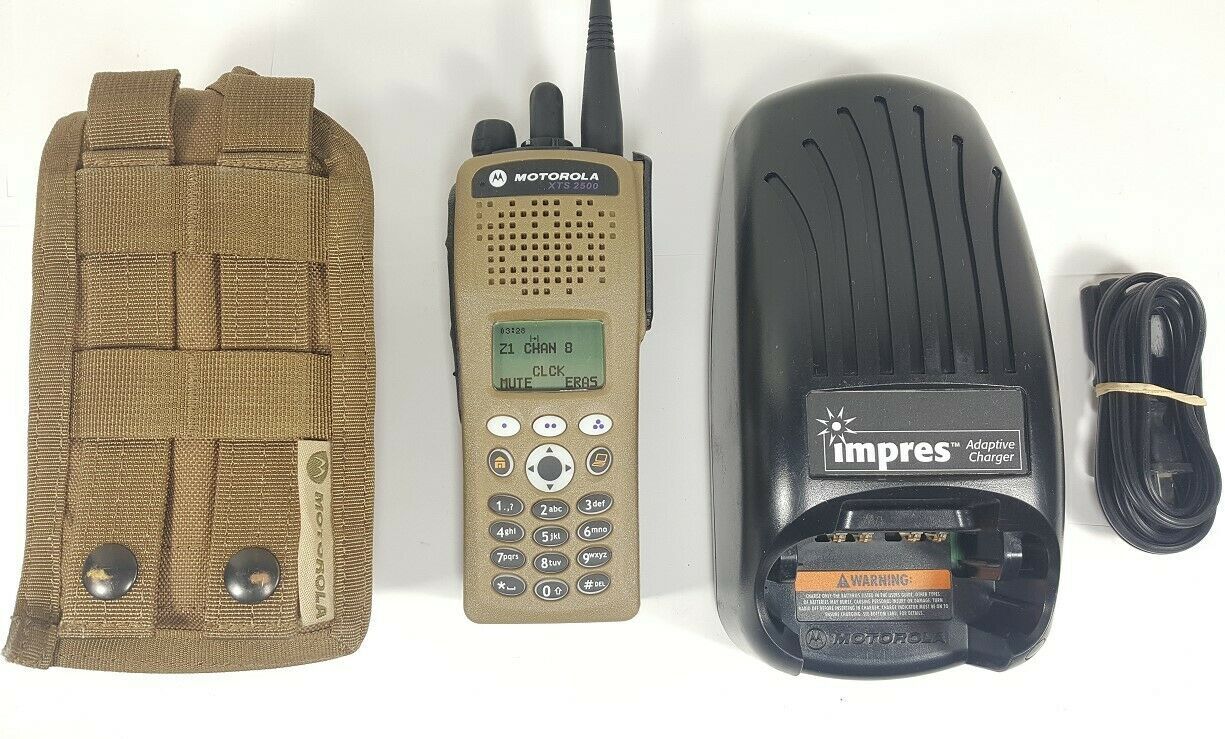

Includes used radio in NEW housing, charger, USED oem battery, belt clip, antenna and molle radio pouch

POUCH has military numbers wrote on it in black marker

Deprogrammed to factory default channels and settings, There are no passwords set.

Free shipping or local pickup.

Host Version R20.50.10

DSP Version R19.50.01

Secure Version ADP, AES 256

Crypto Unit: Internal COMSEC (Type II)

Tuning Version R01.08.12

BRAVO122 Processor

Band UHFL

UHF R1 380-470 MHz

870 Channels

Channel Spacing 12.5/25 kHz

Maximum Frequency Separation - Full Bandsplit

Rated RF Output Power 1 to 5 Watts (Low / High)

• PTT button
• On/Off volume knob
• Programmable orange emergency button
• 16-position top mounted rotary knob
• 3-position concentric switch
• Programmable monitor button
• 2 programmable side buttons
• Transmit LED indicator
• Dial from pre-stored lists
• Programmable soft key
• Backlit Keypad
• 3 soft keys
• 3 navigation keys
• Large bitmap display
• Time / Date
• Caller ID
• Utilizes Windows-Based Customer Programming Software (CPS)
• Supports USB and RS-232 communications
• Built in FLASHport support
• Intrinsically Safe
• Meets Military Specs 810 C, D, E and F

Narrow and wide bandwidth digital receiver

Embedded digital signaling (ASTRO & ASTRO 25)

Enhanced Audio Features – High quality, error corrected digital voice – Noise Reduction Software – Audio Gain Control

FPP Flashcode = 160003-000304-2

D1 B1		Q806  ASTRO IMBE Digital Operation
D2 B2		Q52 Federal Government FPP
D2 B3		H869 Hardware Multikey Encryption
D6 B1		H35  Conventional Systems Operation
D6 B2		H02 Encrypted Tactical Inhibit
D10 B1		Q53 FCC FPP And Radio Cloning
D10 B2		Q387 Conventional Voting Scan
D12 B3		Q667  ADP Software Encryption
