MOTOROLA XTS1500 700 800 MHz P25 Digital Portable Two-Way Radio H66UCD9PW5BN

Model: XTS1500

Channels: 96

Use: Two-Way Radio

Type: Portable/Handheld

MPN: H66UCD9PW5BN

Service: P25

Frequency Band(s): 700 800 MHz

Brand: Motorola

MOTOROLA XTS1500 764-870 MHz P25 Digital Radio H66UCD9PW5BN

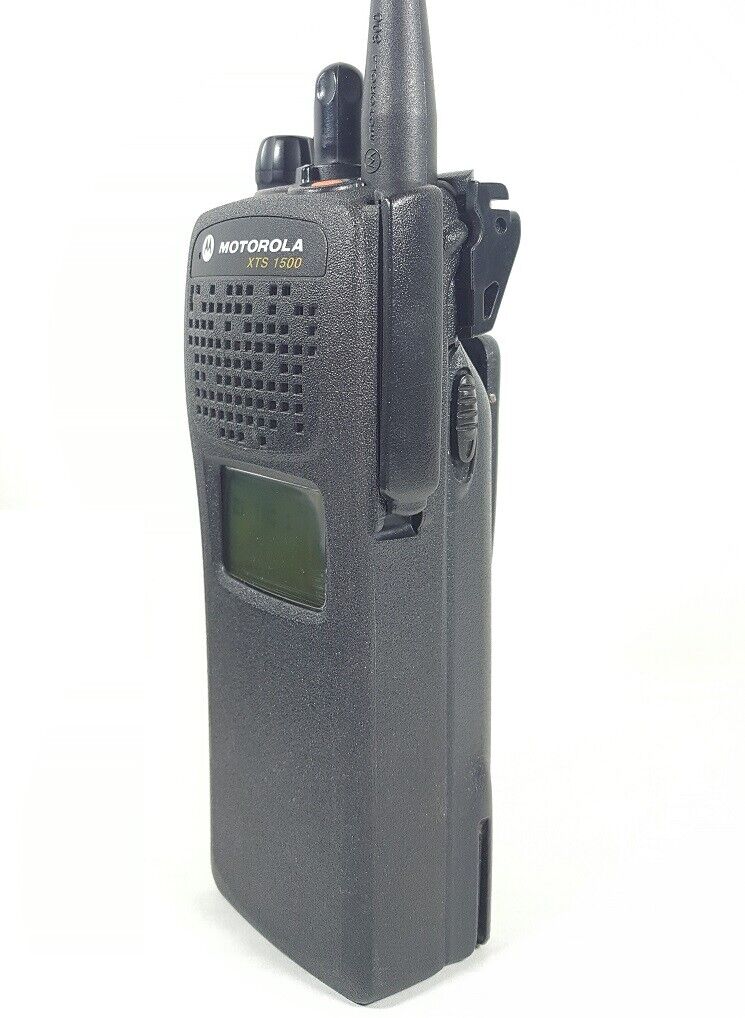

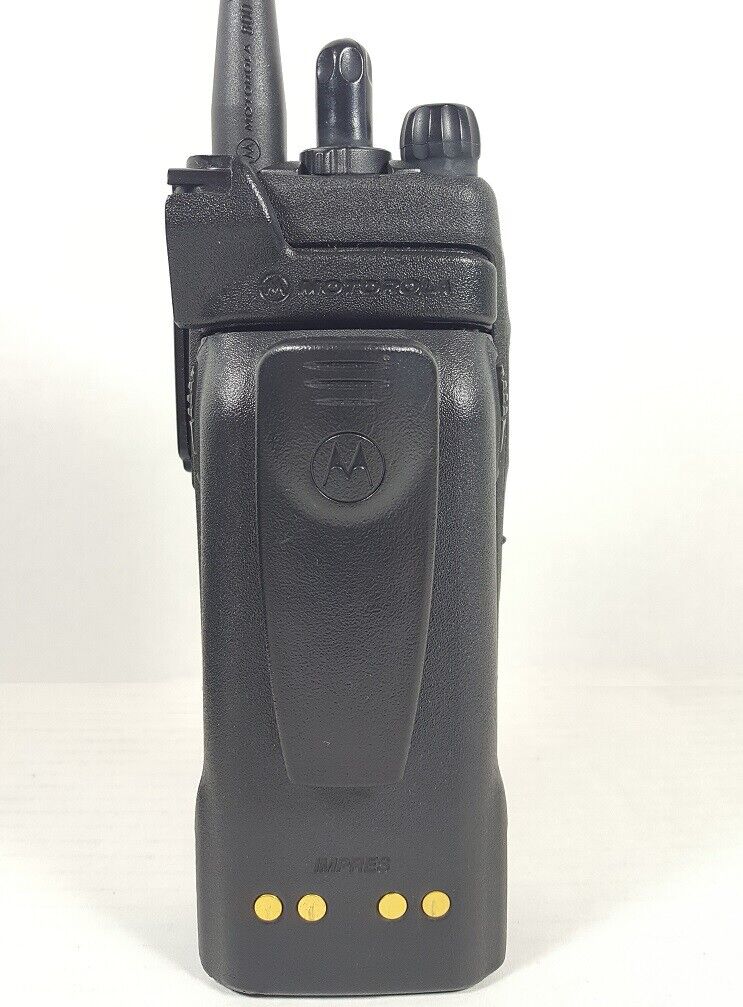

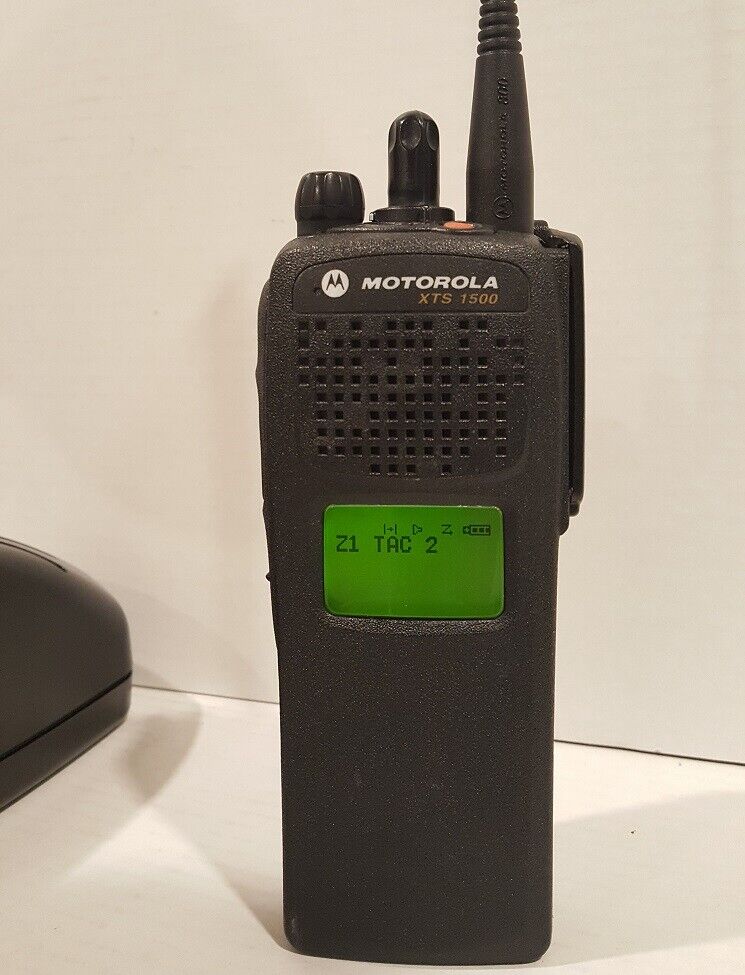

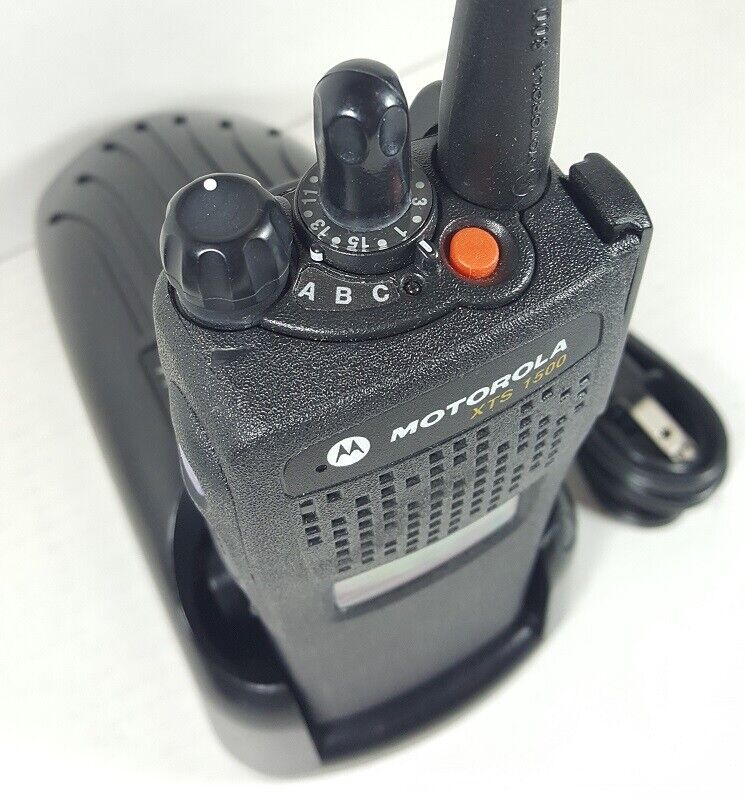

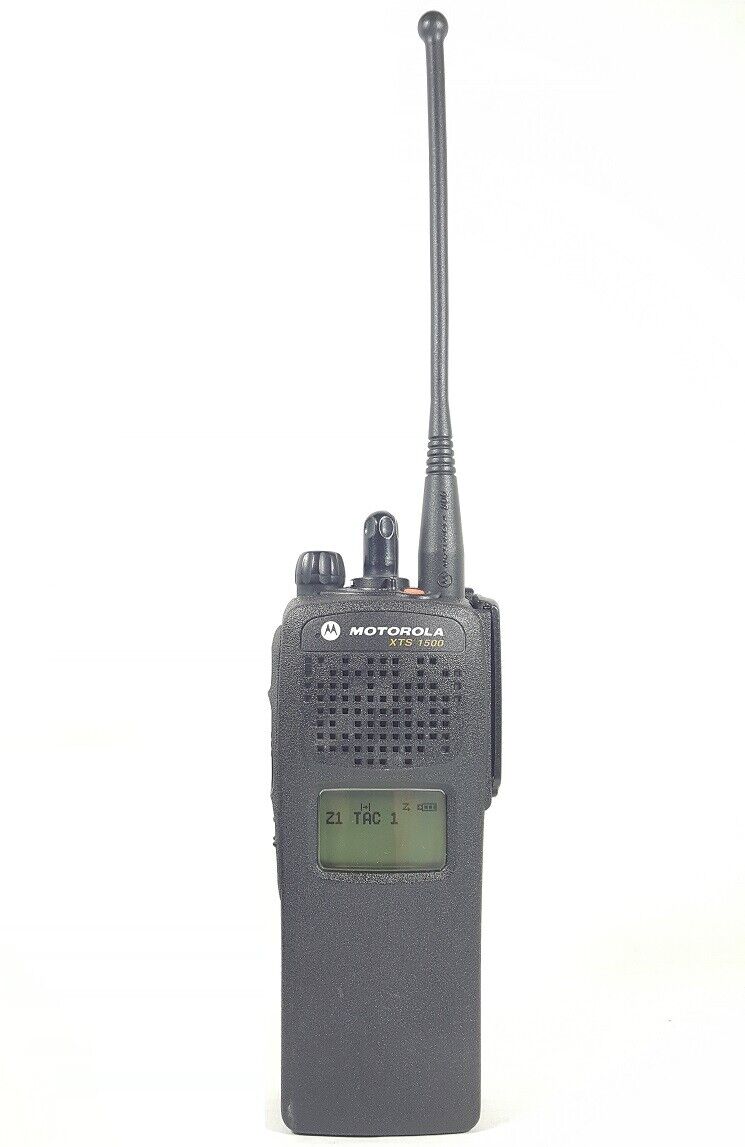

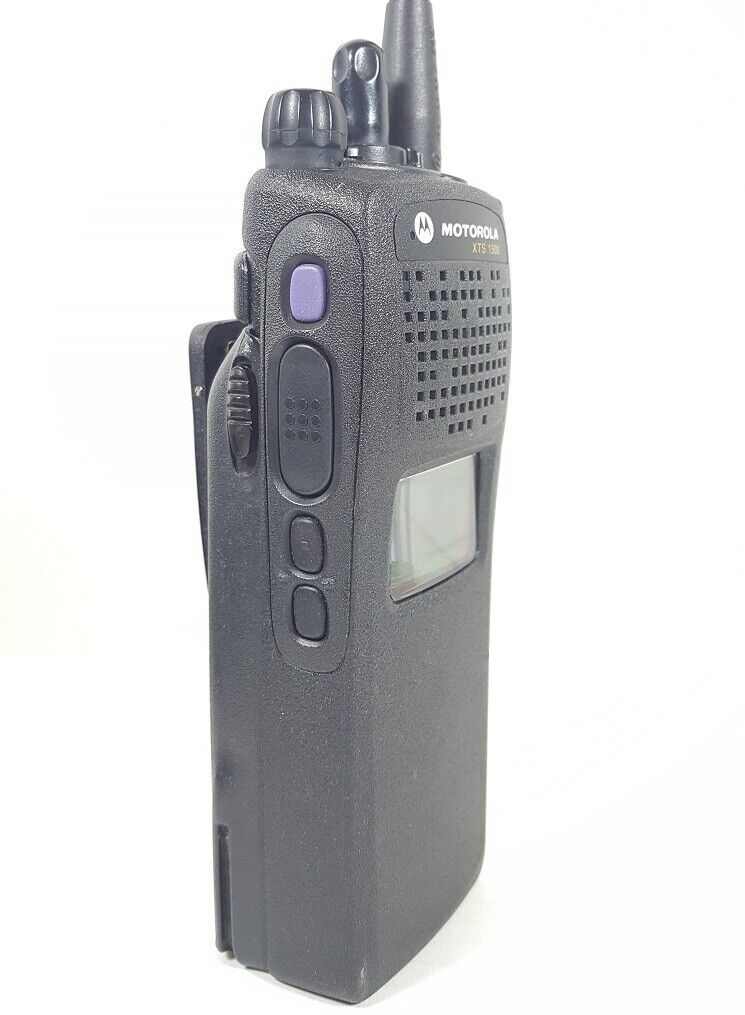

Used, looks and works great, see pictures.

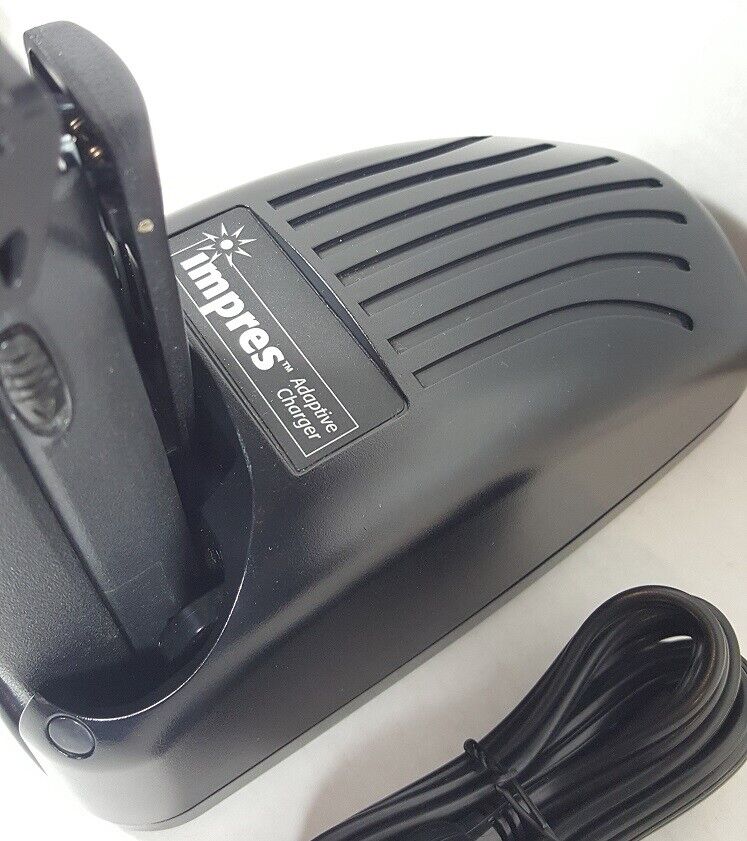

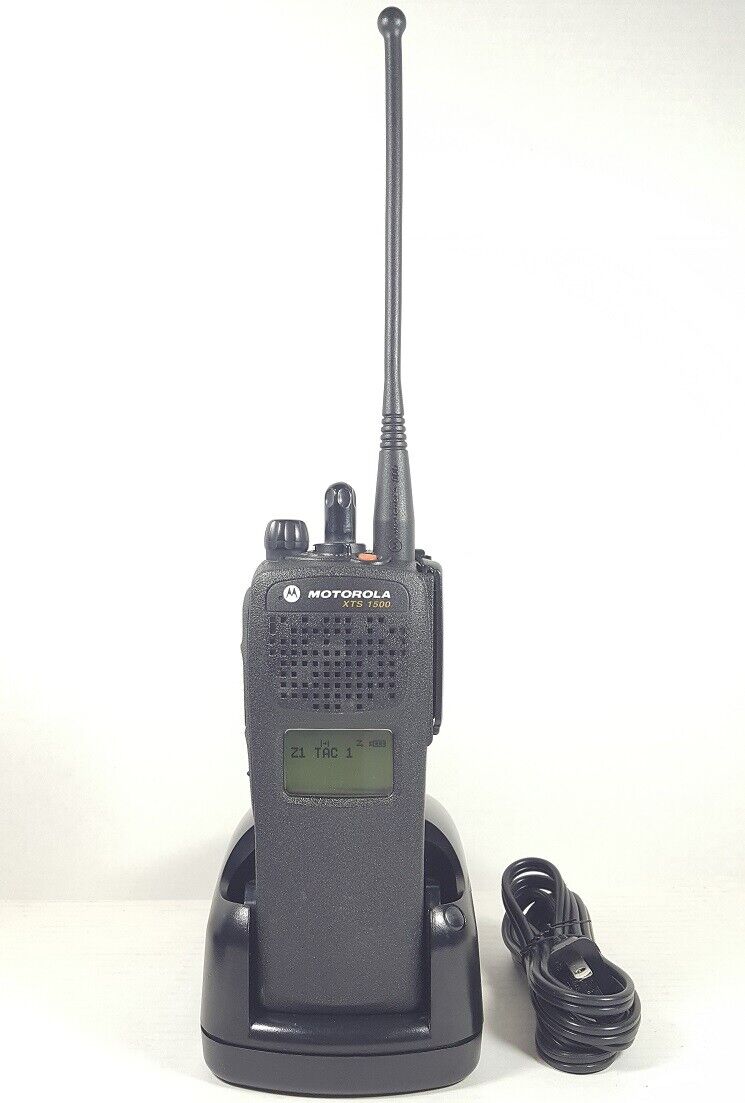

Includes radio, new aftermarket battery, belt clip, antenna, power cord and charger.

There are no system keys or passwords, ready to program.

I can provide a link to CPS r20 if needed.

Free shipping or local pickup.

Host Version R20.50.07

DSP Version R19.50.01

ADP Security

Tuning Version R01.08.12

"BN" 8MB

Band 700/800 MHz

FEATURES

• 700 MHz: 764-776
• 800 MHz: 851-870
• 1–3W (Low/High) Power
• 96 Channels
• Channel Spacing 12.5 / 20 / 25 kHz
• Operates on conventional, P25 analog and digital trunked systems.
• Advanced Digital Privacy (ADP) Encryption
• APCO Project 25 (9600 control channel)
• ASTRO Analog and Digital Trunking with Mutual Aid
• ASTRO25 Digital Trunking with Mutual Aid
• Narrow and wide bandwidth digital receiver
• Embedded digital signaling (ASTRO & ASTRO 25)
• High quality, error corrected digital voice
• Noise Reduction Software
• Audio Gain Control
• PTT button
• On/Off volume knob
• Programmable orange emergency button
• 16-position top mounted rotary knob
• 3-position concentric switch
• Programmable monitor button
• 2 programmable side buttons

Utilizes Windows-Based Customer Programming Software (CPS)

Supports USB and RS-232 communications

Built in FLASHport support

Intrinsically Safe

Immersible Housing

Meets Military Specs 810 C, D, E and F

Trunking standards supported – APCO Project 16 (3600 control channel) and – APCO Project 25 (9600 control channel)

System configurations – ASTRO Analog and Digital Trunking with Mutual Aid and – ASTRO25 Digital Trunking with Mutual Aid

Narrow and wide bandwidth digital receiver

Embedded digital signaling (ASTRO & ASTRO 25)

Enhanced Audio Features – High quality, error corrected digital voice – Noise Reduction Software – Audio Gain Control

Installed FLASHport Options 101088-00148E-3

	Q806				ASTRO IMBE Digital Operation
	H43				Trunked Remote Monitor/Radio Trace
	G996				Over the Air Provisioning
	H38				SmartZone Systems Operation
	Q947				APCO Packet Data Interface
	Q173				SmartZone Omnilink MultiZone Operation
	Q361				ASTRO 25 9600 Baud Trunking
	Q446				Fireground Voice/Channel Announcement
	Q667				ADP Software Encryption
	Q574				9600 Baud Trunking
