Motorola XTL1500 VHF 136-174 MHz SmartZone P25 Digital Mobile Radio M28KSS9PW1AN

Number of Channels: 512

Model: XTL1500

Country/Region of Manufacture: Malaysia

Product Line: ASTRO25

Band: VHF

Type: Mobile/In-Vehicle

Communications Protocol: APCO Project 25 (P25)

Features: Digital,Analog,Trunking,Conventional,Narrowband,Wideband,ADP Encryption,Automatic Noise Limiter (ANL),Channel Monitor,CTCSS,DCS,GPS,NOAA Weather Channels,Repeater

Memory: 8 MB

Color: Black

MPN: M28KSS9PW1AN

Frequency Band(s): VHF

Use: Two-Way Radio

Service: P25

Wireless Range: 1-25 Miles

Power: 50 Watts

Brand: Motorola

Motorola XTL1500 VHF 136-174 MHz SmartZone P25 Digital Mobile Radio M28KSS9PW1AN

This unit is used, works great, has some minor scuffs, see picture.

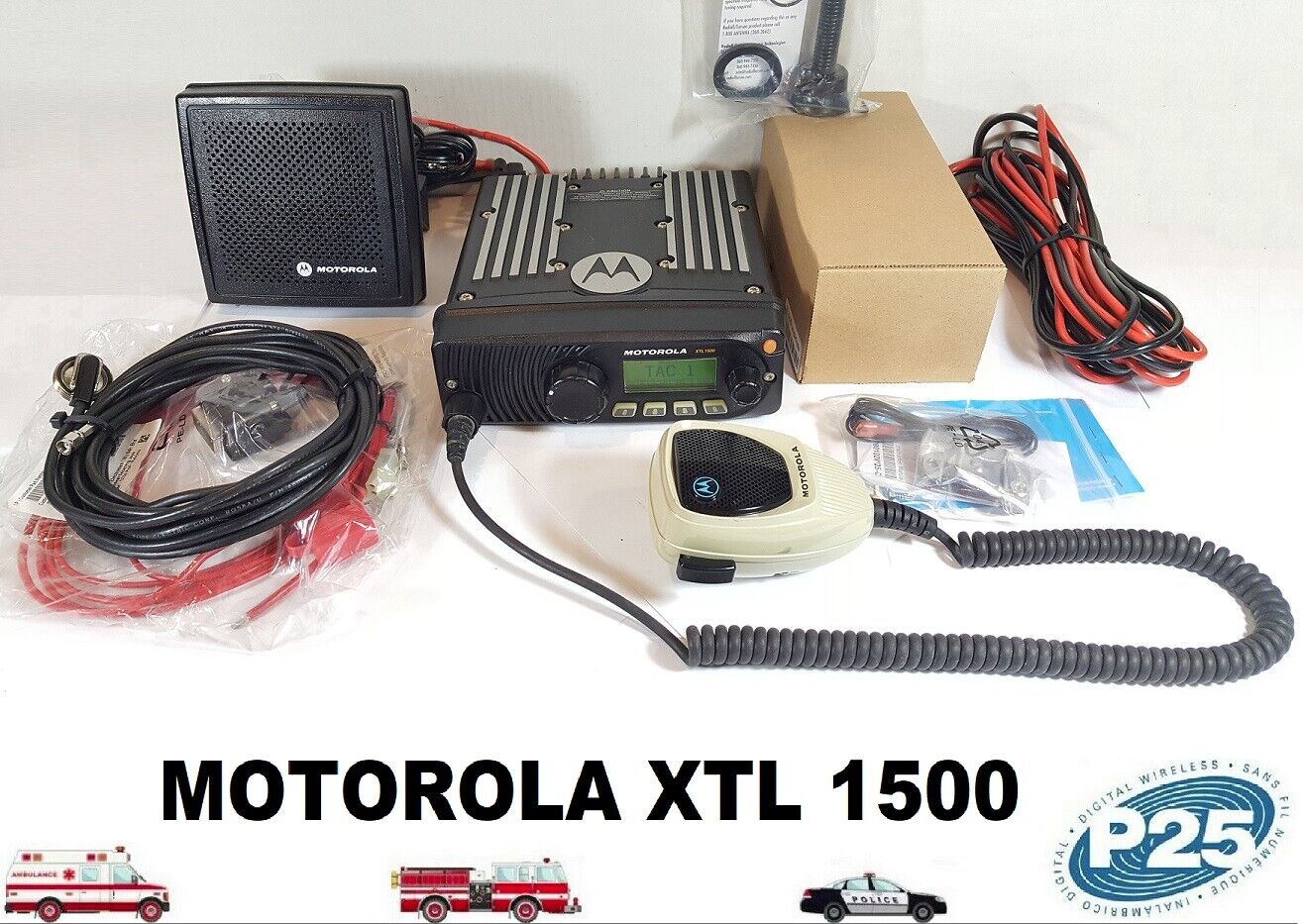

Includes radio, antenna, cables, mounting bracket, mic, external speaker. COMPLETE KIT!

No advanced system keys installed. I dont offer programming, I can send a link to the cps if needed.

Free shipping or local pickup.

This Motorola XTL 1500 Project 25 compliant mobile radio is tough and well suited for users in a construction, utility, petroleum, fire, ems and law enforcement.

Model M28KSS9PW1AN

Firmware: 20.50.09

DSP:R19.50.01

FCC ID AZ492FT3806

• 136-174 MHz
• 10-50 Watts (Low/High) power output
• 512 Channels
• Dual mode operation (ASTRO Digital and Analog)
• Wideband / Narrowband
• Conventional, SmartZone Trunking, SMARTNET Trunking
• Project 25 on Conventional and Trunking systems
• Signaling Rate 9.6 kbps
• OTAP (Over the air programming)
• Encryption (ADP)
• Integrated voice and data
• Project 25 compliance interoperable voice signaling features
• 12.5 kHz bandwidth receiver (digital)
• 12.5/25/30 kHz bandwidth receiver (analog)
• 4 Programmable buttons
• Emergency button
• GNSS=Global Navigation Satellite System (requires GPS antenna)
• Utilizes Windows based customer programming software
• Built in FLASHport support
• Internal Speaker
• Dash mount
• Meets Military Specs 810 (C,D, E and F)

Included Flashcode Options 5090C8-00148C-0

	G806				ASTRO IMBE Digital Operation
	G114				Enhanced Digital ID Display
	G170				Trunked Remote Monitor/Radio Trace
	G683				Trunked One Touch Status Message
	G791				PM1500/XTL1500 Enhanced Software Capabilities
	G996				Over the Air Provisioning
	G51				SmartZone Systems Operation
	W947				APCO Packet Data Interface
	G173				SmartZone Omnilink MultiZone Operation
	G361				ASTRO 25 9600 Baud Trunking
	G193				ADP Software Encryption
	G788				9600 Baud Trunking
