Motorola SRX 2200 UHF 380-470 MHz Combat Two Way Radio P25 P2 AES H99QDD9PW5AN

Name: Motorola SRX 2200 UHF 380-470 MHz Combat Two Way Radio P25 P2 AES H99QDD9PW5AN
Brand: Motorola
SKU: H99QDD9PW5AN
Price: 1495.00 USD
Availability: InStock

$1,495.00 USD

Sale Sold out

Quantity

IC ID: 109U-89FT4892

Communications Protocol: Project 25 Phase I Project 25 Phase II

Frequency Separation: Full Bandsplit

Memory: 3000 Channels

Band: UHF

GPS Operation: Autonomous (Non-Assisted)

MPN: H99QDD9PW5AN

Operation: Digital and Analog

Unit Type: RADIO AND ACCESSORY KIT

Number of Channels: 3000

FCC ID: AZ489FT4892

Bandwidth: Narrow Band Wide Band

Features: Automatic Noise Limiter (ANL),Channel Monitor,CTCSS,DCS,GPS,NOAA Weather Channels,Repeater,Waterproof,P25 Phase I,P25 Phase II,Tempered Glass,IMPRES

Unit Quantity: 1

Use: Two-Way Radio

FIPS: 140-2 Level 3 Validation

Color: Coyote Brown

Service: P25

Channel Spacing: 6.25/12.5/20/25 kHz

Automatic Switching: P25 Phase I and P25 Phase II

Brand: Motorola

Type: Portable/Handheld

Wireless Range: 380-470 MHz

Secure Encryption Algorithm: AES-256 AES-GCM ADP

Two Way Radio Features: Conventional SMARTnet SMARTzone Omnilink

Channel Stepping: 2.5 kHz

Model: Motorola SRX 2200

Frequency: 380-470 MHz

Country/Region of Manufacture: United States

Item Weight: 3

Power: 6 Watts

Product Line: Motorola SRX2200

Motorola SRX2200 Military Portable Two Way Radio UHF 380-470 MHz MHz P25 TDMA AES Bluetooth Model H99QDD9PW5AN

===FAST & FREE SHIPPING==>>>

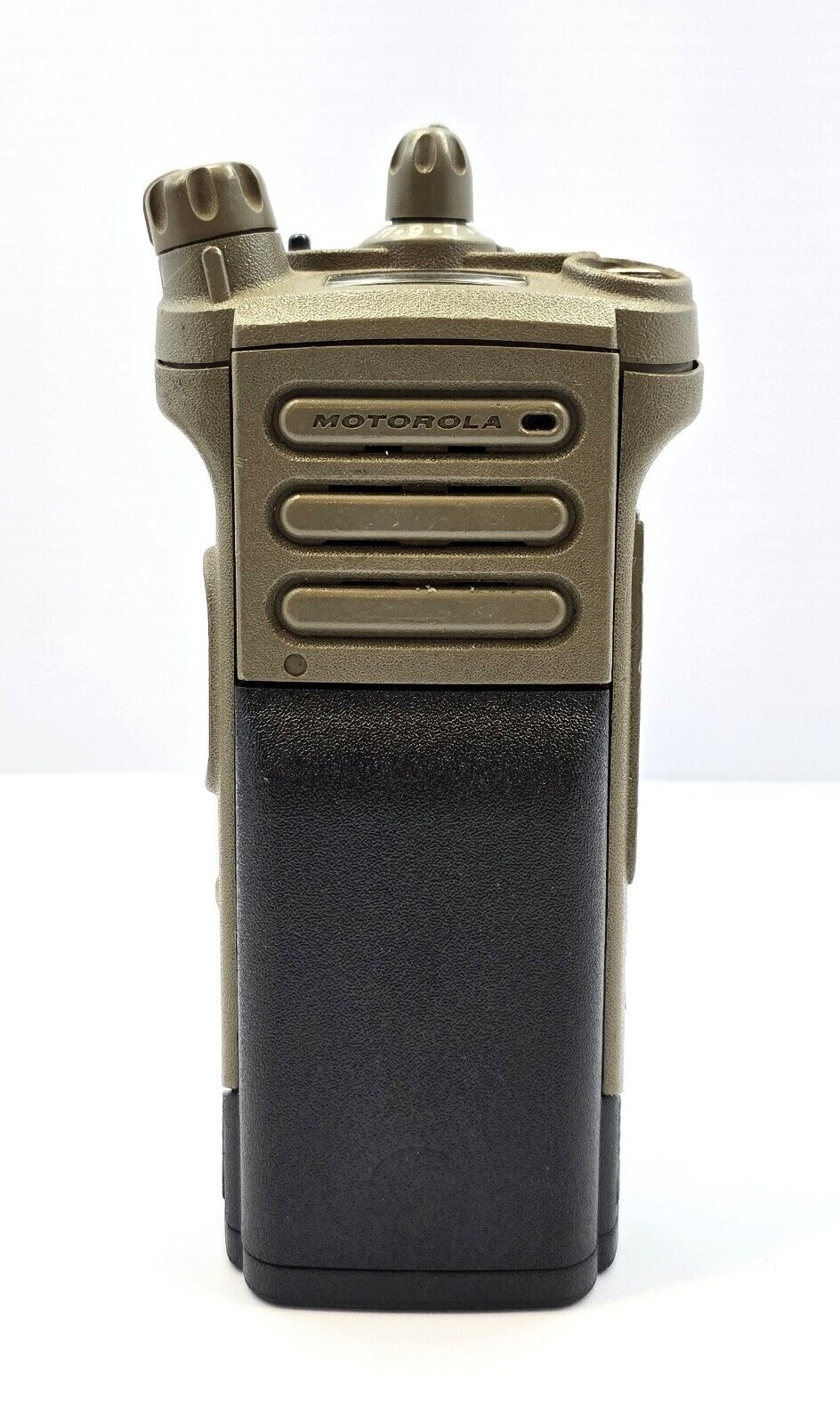

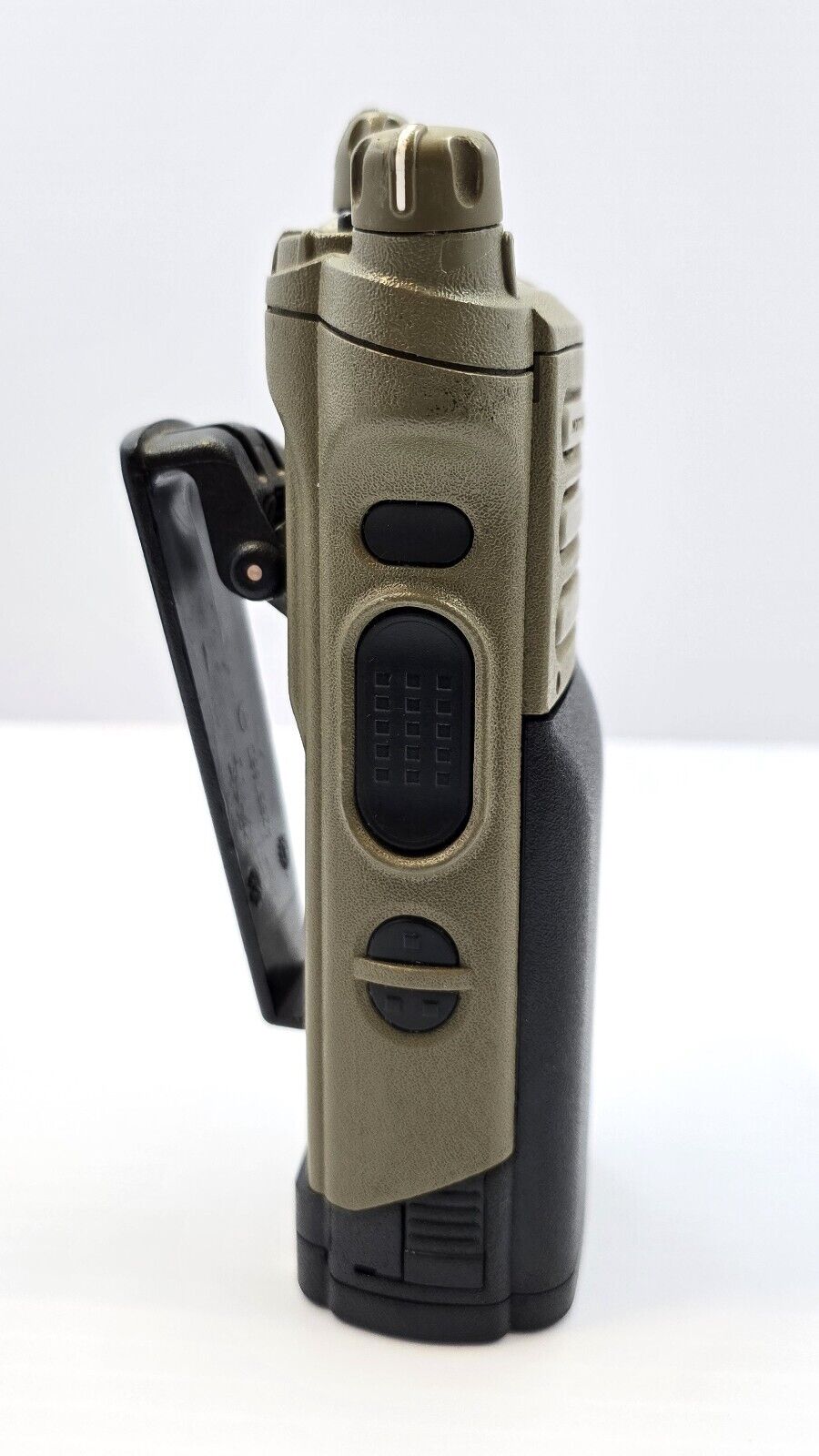

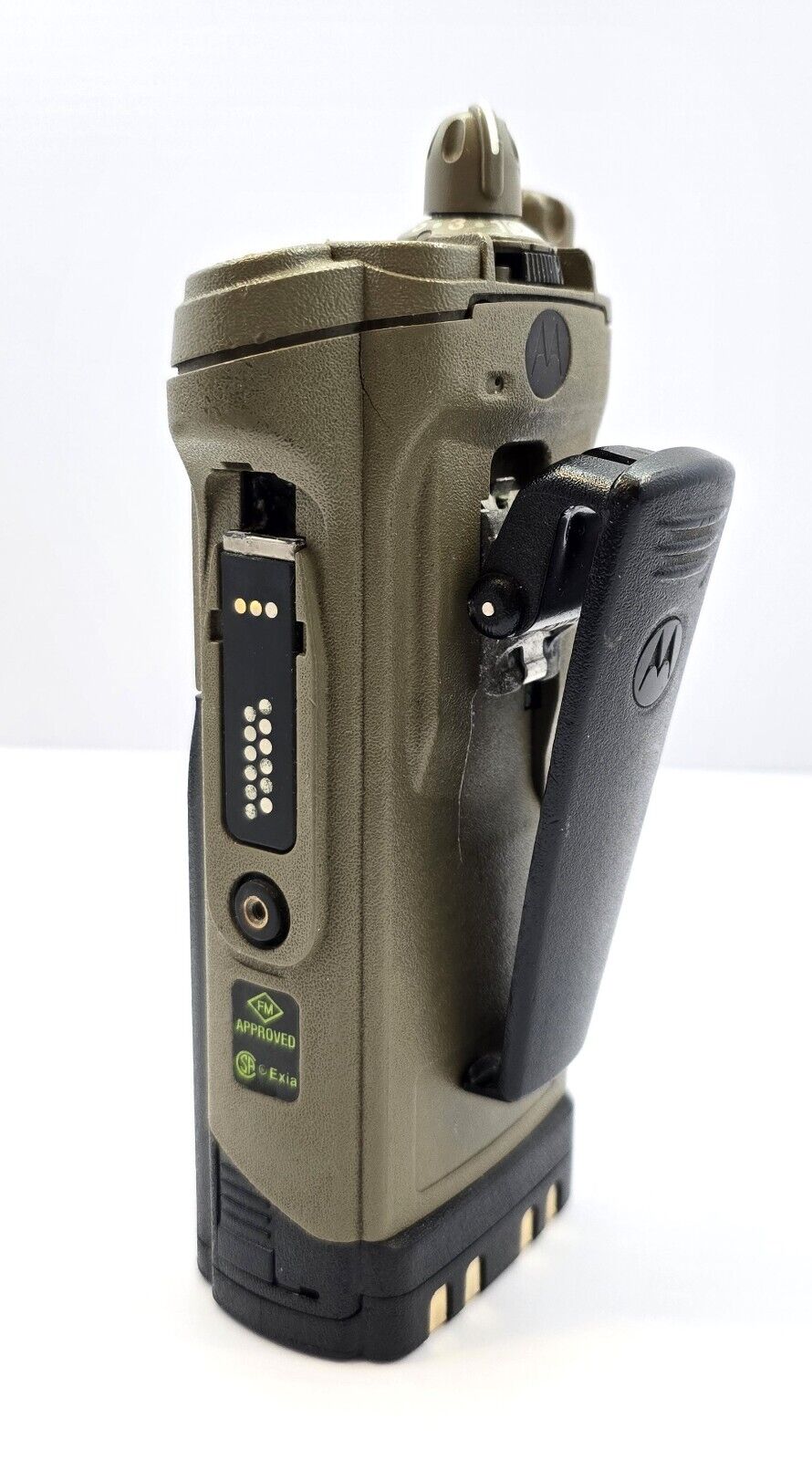

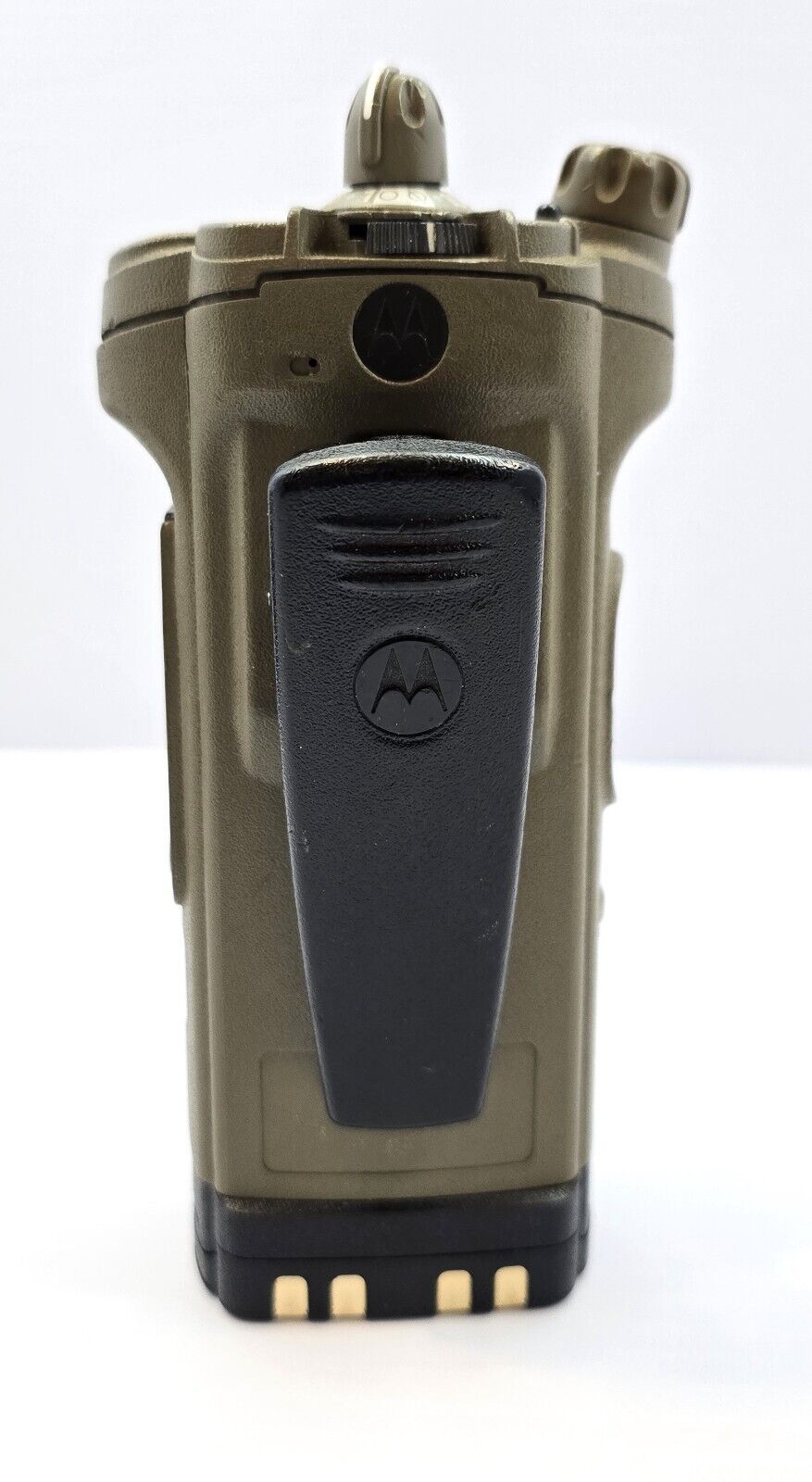

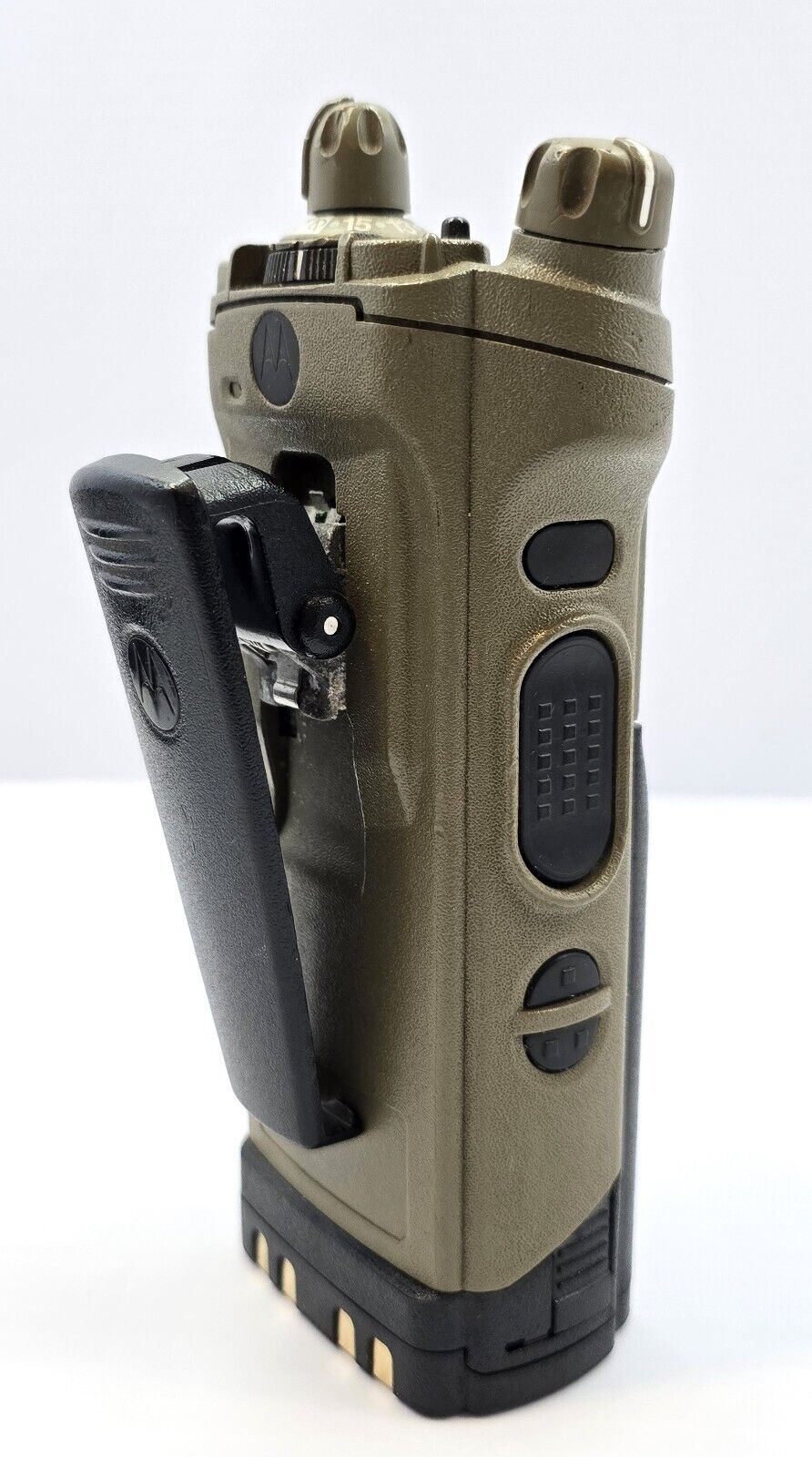

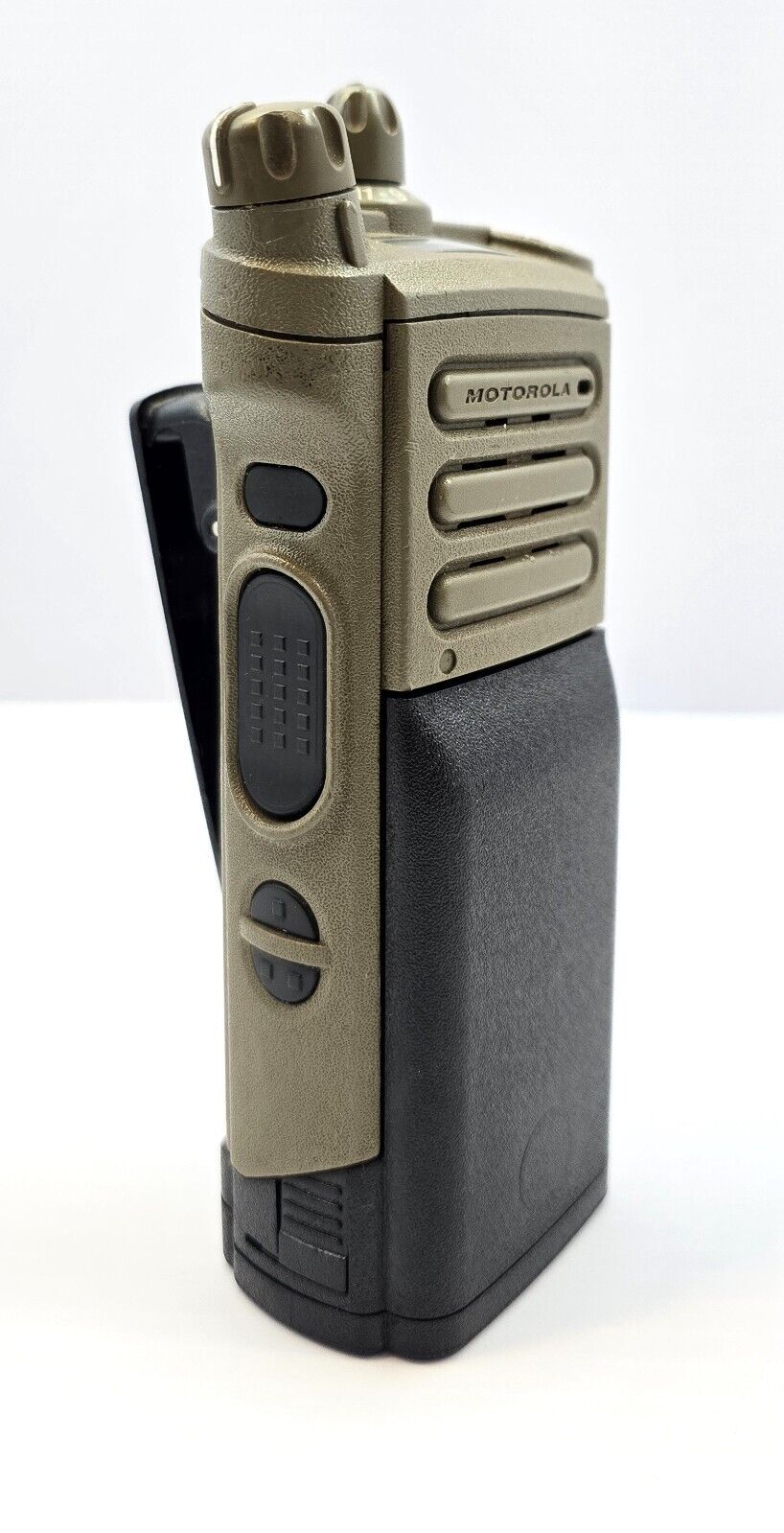

LOOKS GREAT, WORKS GREAT. See pictures.

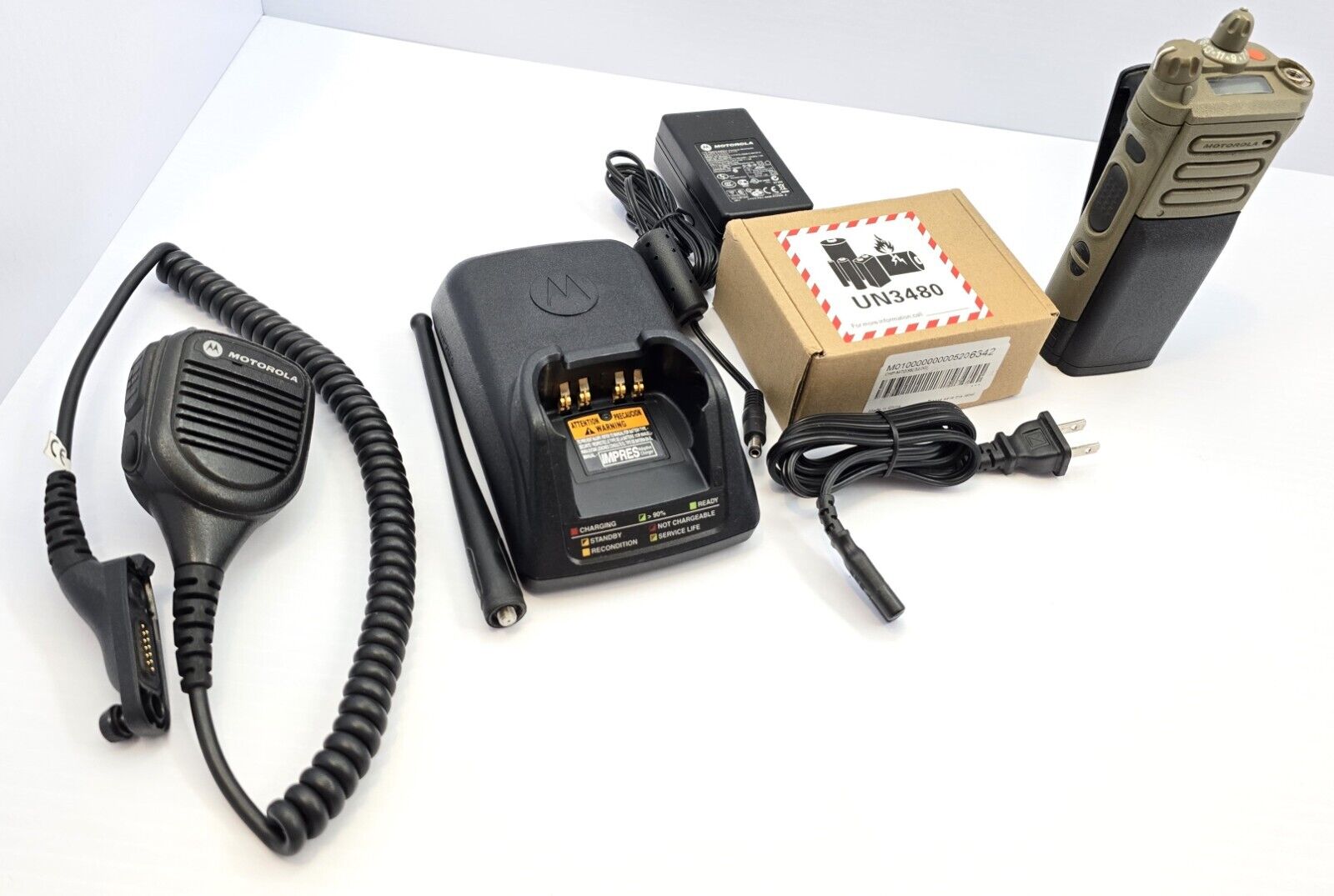

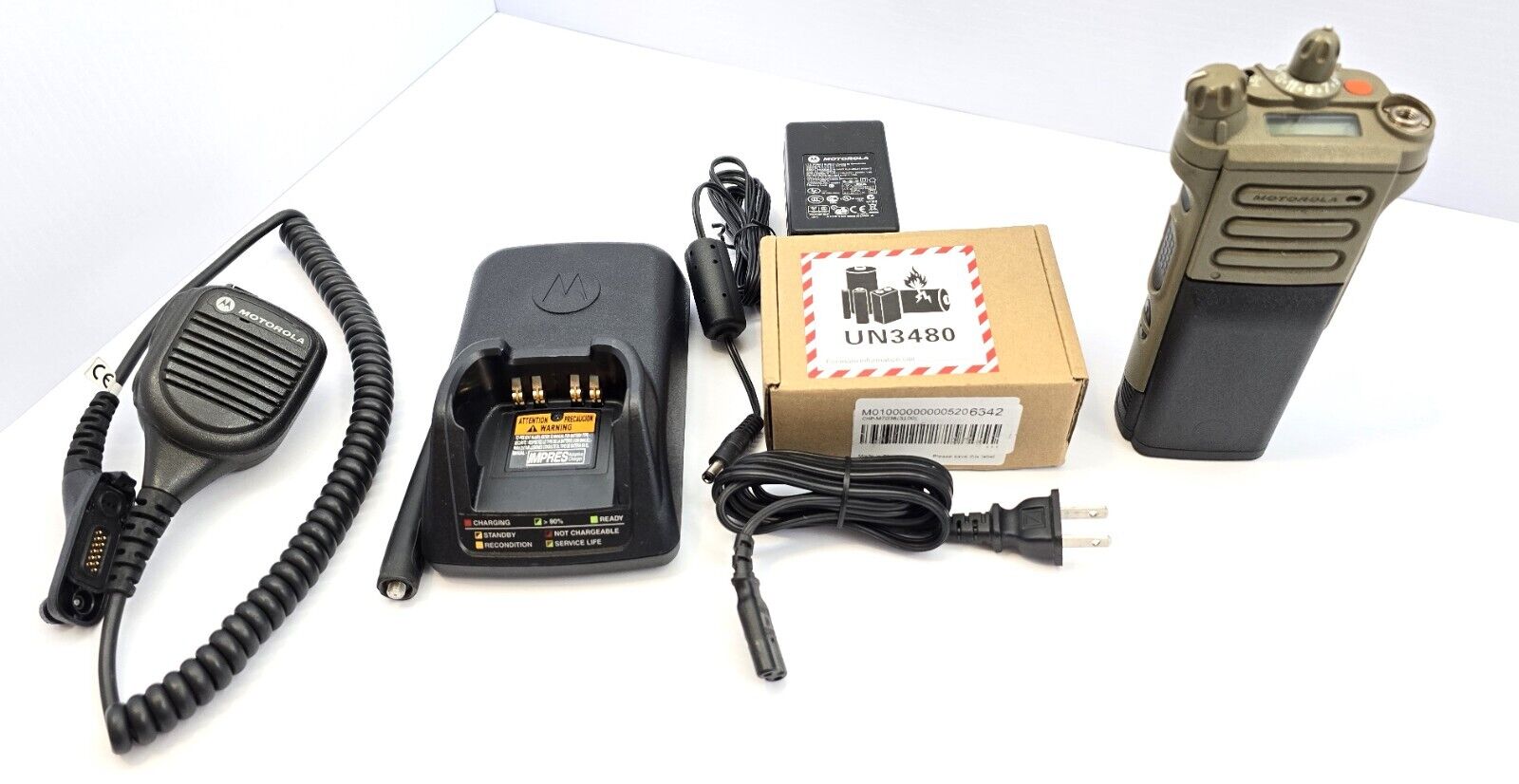

Includes:

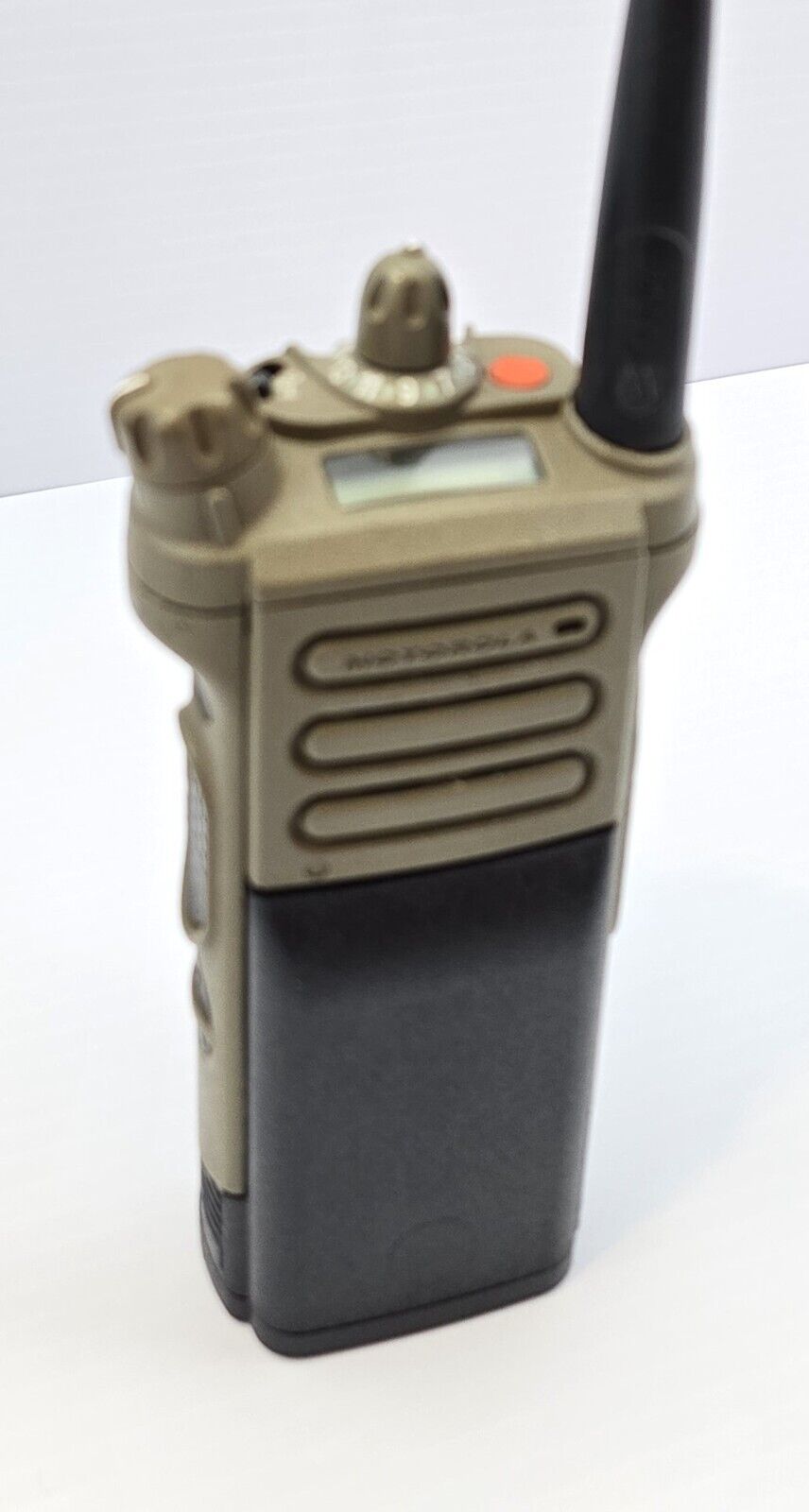

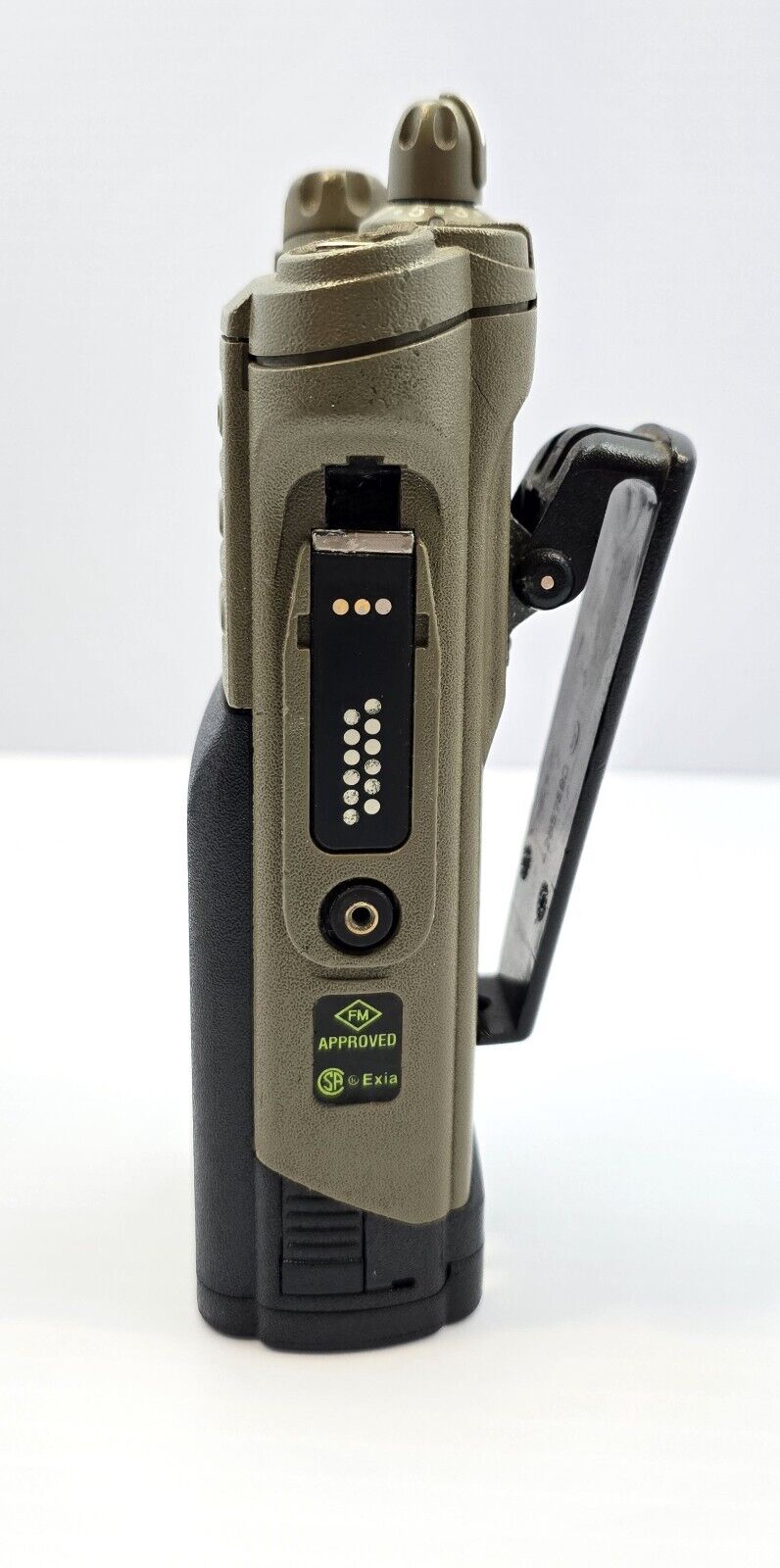

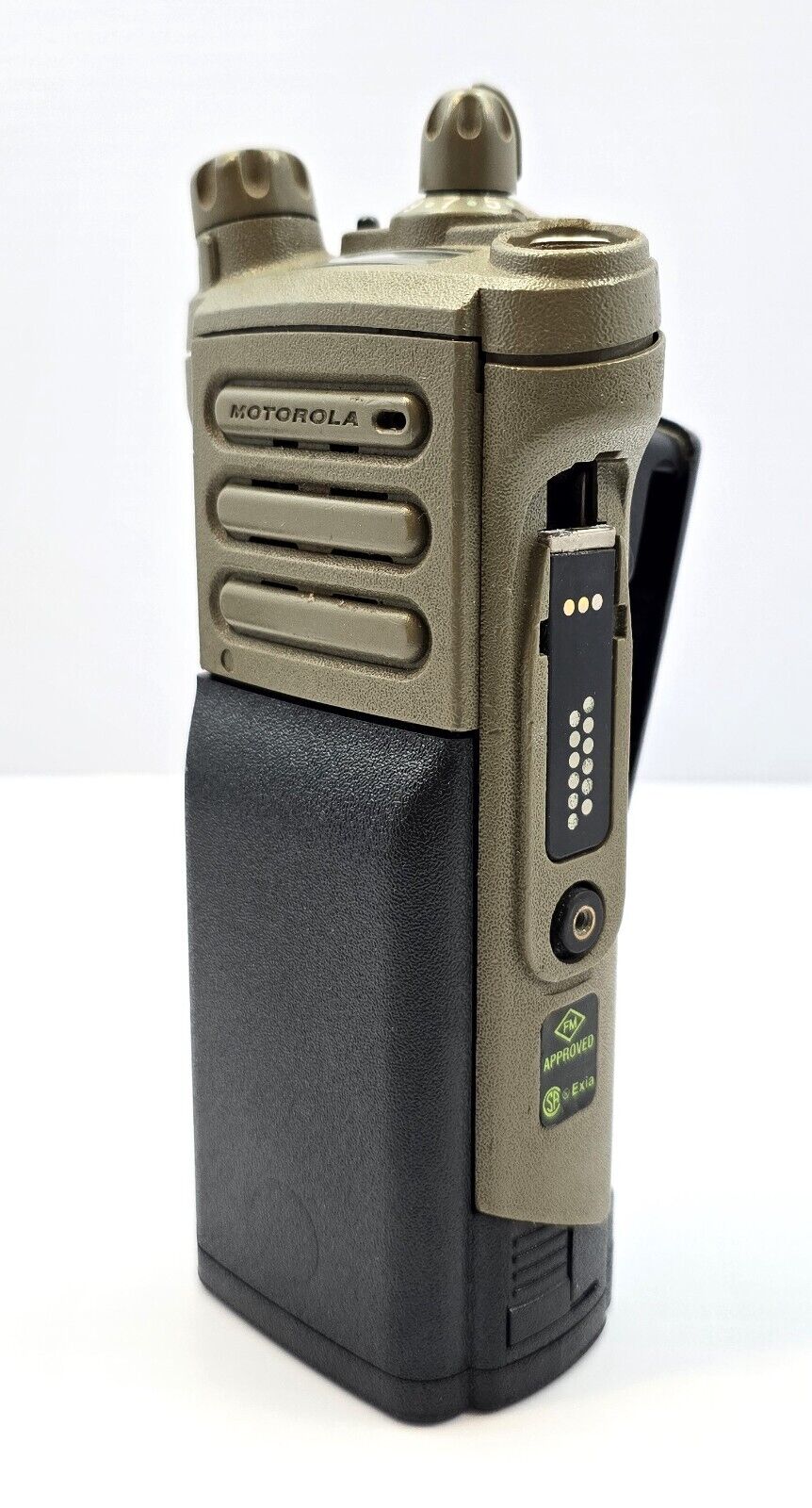

Motorola SRX2200 model 1 UHF 380-470 MHz P25 TDMA Digital Two Way Radio H99QDD9PW5AN

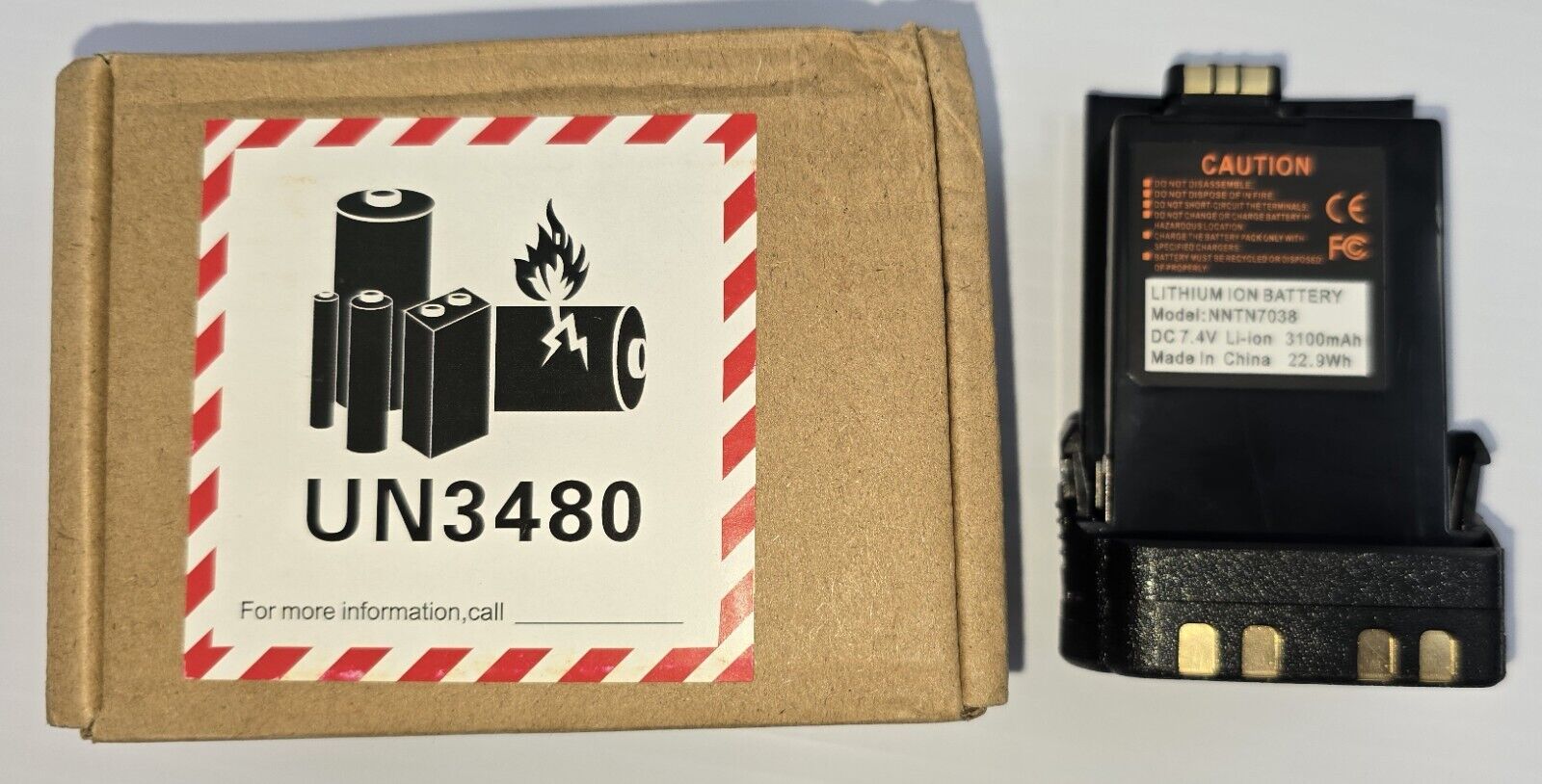

NEW AFTERMARKET Battery replacement for NNTN7038 7.4 VOLT Li-ion 3100 mAh 22.9 Wh
Motorola UHF/GPS Antenna

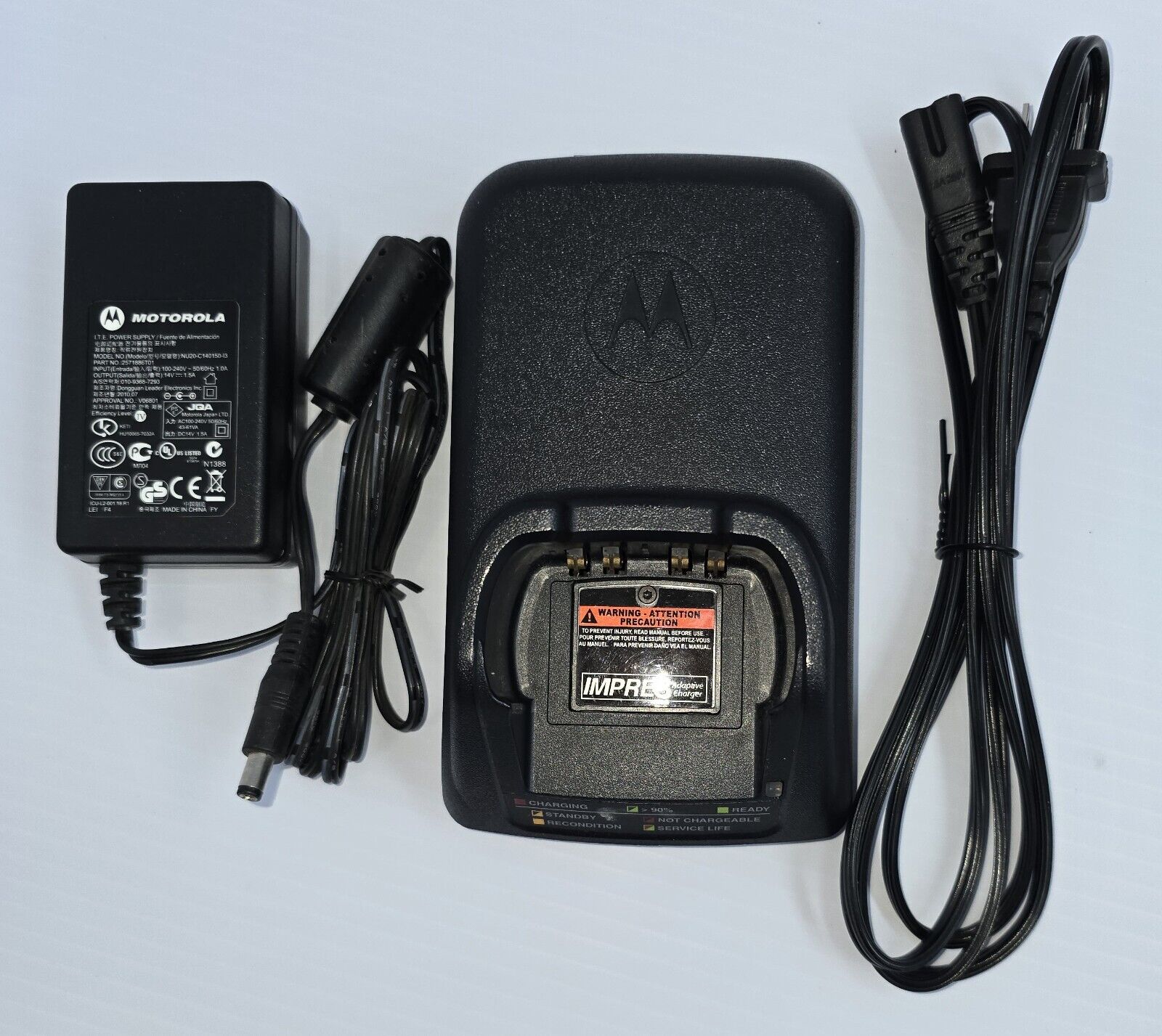

IMPRES Adaptive Charger
Dust Cover

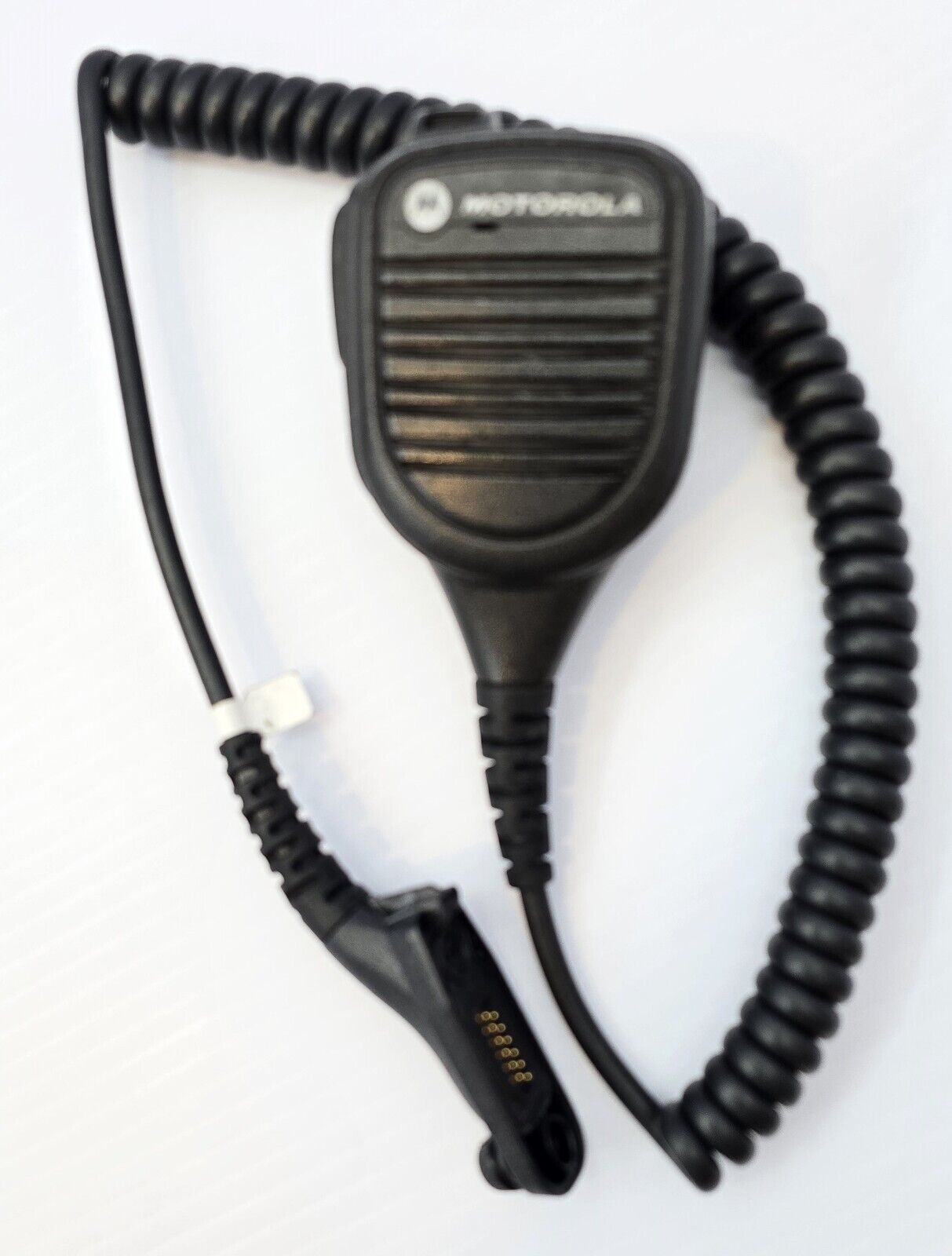

Remote Speaker Microphone PMMN4065A
HARD BLACK PLASTIC BELT CLIP

Choppers roaring. Cargo trucks rumbling. Wind howling. In the heat of action, soldiers depend upon every word being heard and every transmission being understood. You need a rugged, reliable radio with crystal-clear and secure communication that stands up to the harshest environments, loudest noises and longest hours.

Introducing the Motorola SRX 2200 Combat Military Two Way Radio! This top-of-the-line unit is jam-packed with features to make your communication experience seamless and easy.
With 3000 channels this portable/handheld unit operates on both digital and analog modes, making it versatile for any use.
Other features include automatic noise limiter, waterproofing, tempered glass, and CTCSS/DCS. With narrow band and wide band bandwidth, and P25 Phase I and P25 Phase II automatic switching, this unit is perfect for any environment. Additionally, it has secure encryption algorithms like AES-256, AES-GCM, and ADP for FIPS 140-2 Level 3 Validation. These life-saving radios provide greater coverage, improve voice communications within squads and maintain the overall safety of our military personnel. The SRX 2200 Combat Radio delivers it all in a rugged grab and go unit that's ready for action and built to last, from base to battlefield.

Motorola SRX 2200 UHF is equipped with a 3-watt speaker, 3 integrated microphones and the Adaptive Audio Engine. This changes the level of noise suppression, microphone gain, windporting and speaker equalization to produce clear and loud audio in any environment.

Band Spectrum UHF

Model SRX2200

MPN H99QDD9PW5AN

Channel Capacity 3000

RF Output Power 6 Watts

Frequency 380-470 MHz

Channel Stepping 2.5 kHz

Channel Spacing 6.25/12.5/20/25 kHz

Bluetooth Operation
Encrypted Tactical Inhibit
Personnel Accountability
Legacy SW System Key Enable
P25 Radio Authentication
Enhancement Level 2
One Touch
Remote Monitor / Radio Trace
Extreme Noise Reduction
APCO Packet Data
Conventional Voting Scan
Digital IMBE Trunking with 9600 Control Channel Only (APCO Trunking)
GPS Activation
IMBE Digital Operation
Non-FED Front Panel Programming
OmniLink
OTAR And Multikey
Over the Air Provisioning
SmartZone Operation
TDMA Operation
UHF Primary Band
DVRS PSU Activation
P25 Common Air Interface
Enhanced Data Operation
P25 Digital Tone Signaling
APX Geofence
Site Selectable Alert for P25 Trunking
Group Services
Mission Critical Geofence

Secure Encryption

AES-256, AES-GCM, ADP

Voice Announcements

Narrow Band Wide Band

FLASHport Memory 64MB

FIPS 140-2 Level 3 validation

SmartZone, Omnilink Trunking

ASTRO 25 Integrated Voice & Data

Digital P25 Phase II TDMA Trunking

IP68 submersion (2 meters, 2 hours)

Secure Encryption Algorithm 256-bit AES

Maximum Frequency Separation Full Bandsplit

Automatic switching between P25 Phase I and II

Digital P25 Phase I FDMA, Conventional and Trunking

GPS/GPS/GNSS Mode of Operation Autonomous (Non-Assisted)

9600 Baud Digital APCO P25 Phase 1 FDMA and Phase 2 TDMA Trunking

Digital APCO 25, Conventional, Analog MDC 1200, Quick Call II System Configurations

Aluminum Alloy Endoskeleton protects the radio's interior from water intrusion even if the outer housing is breached

Full Bitmap Monochromatic LCD Top Display

1 line text x 8 characters

1 line of icons

Multi-color backlight

Buttons & Switches: Large PTT button Angled On/Off volume control Orange emergency button 16 position top-mounted rotary switch 2-position concentric switch Multi-color backlight 3-position toggle switch 3 programmable side buttons

Utilizes Windows-based Customer Programming Software (CPS) Supports USB communications. Built in FLASHport support.

FLASH CODE OPTIONS INSTALLED

Platform: SRX2200

Flashcode: RC40N9-001490-2

Q806: ASTRO IMBE Digital Operation

G996: Over the Air Provisioning

H43: Trunked Remote Monitor/Radio Trace

H869: Hardware Multikey Encryption

Q498: Hardware Multikey Encryption w/ OTAR

QA00571: Primary Band: UHF Range 1

QA00583: Enable Bluetooth Operation

QA01749: Legacy SW System Key Enable
