H18KEF9PW6AN MOTOROLA XTS5000 II VHF P25 Portable Digital Radio AES-256 DES-XL
H18KEF9PW6AN MOTOROLA XTS5000 II VHF P25 Portable Digital Radio AES-256 DES-XL
Regular price
$509.00 USD
Regular price
Sale price
$509.00 USD
Unit price
per
Couldn't load pickup availability
Communications Protocol: APCO Project 25 (P25)
Color: Black
Service: P25
Band: VHF
MPN: XTS5000
Brand: Motorola
Type: Portable/Handheld
Number of Channels: 1000
Wireless Range: 136-174 MHz
Model: H18KEF9PW6AN
Frequency Band(s): VHF
Features: Backlight,Limited Keypad,ADP,Auto Scan,Automatic Noise Limiter (ANL),Channel Monitor,CTCSS,DCS,NOAA Weather Channels
Country/Region of Manufacture: Malaysia
Product Line: ASTRO
UPC: Does not apply
Motorola XTS 5000 VHF 136-174 MHz P25 SmartZone Portable Digital Radio H18KEF9PW6AN

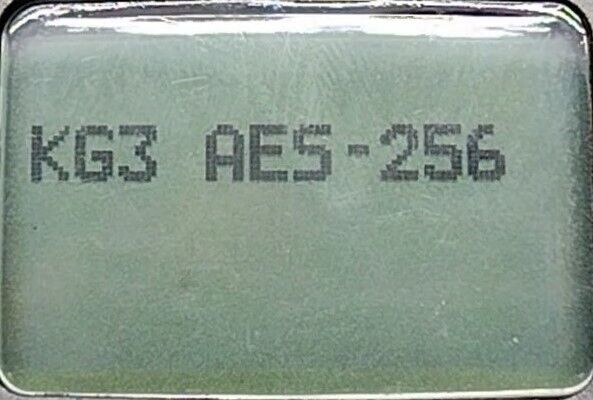

WITH AES-256

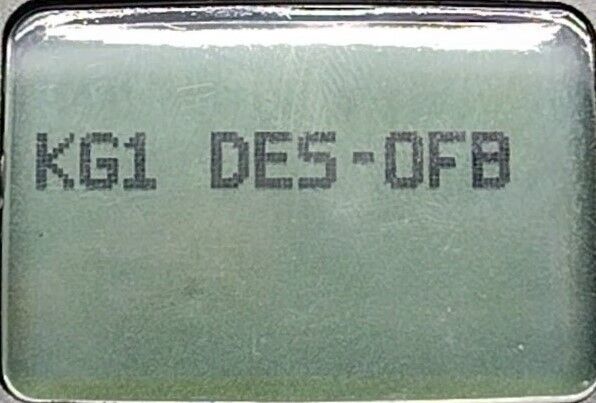

- AES-256

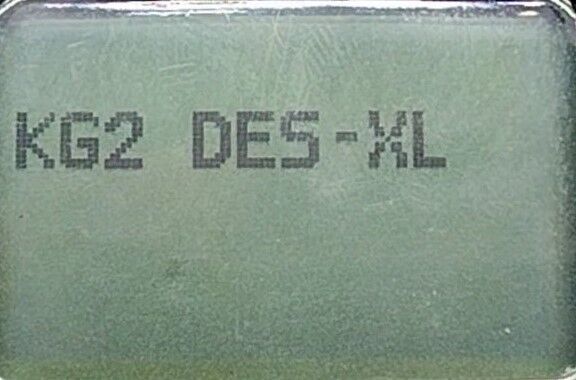

- DES-XL
- DES-OFB
===========FAST & FREE SHIPPING======>>>>>>>>

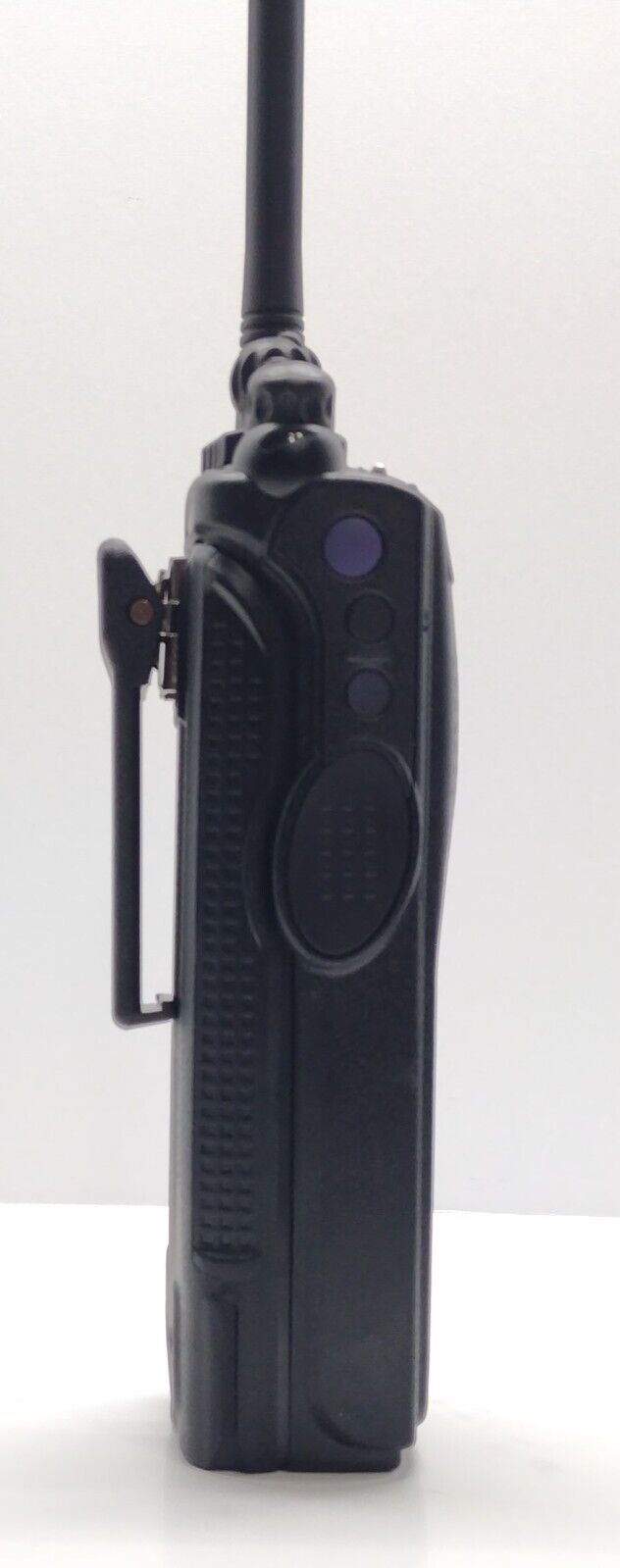

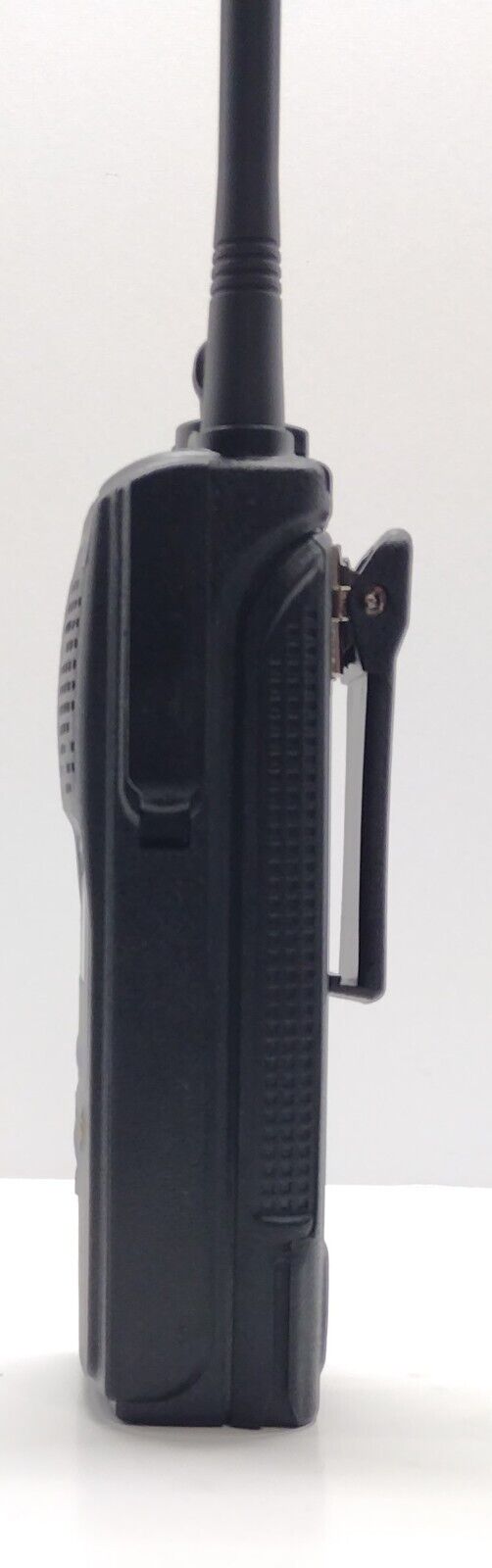

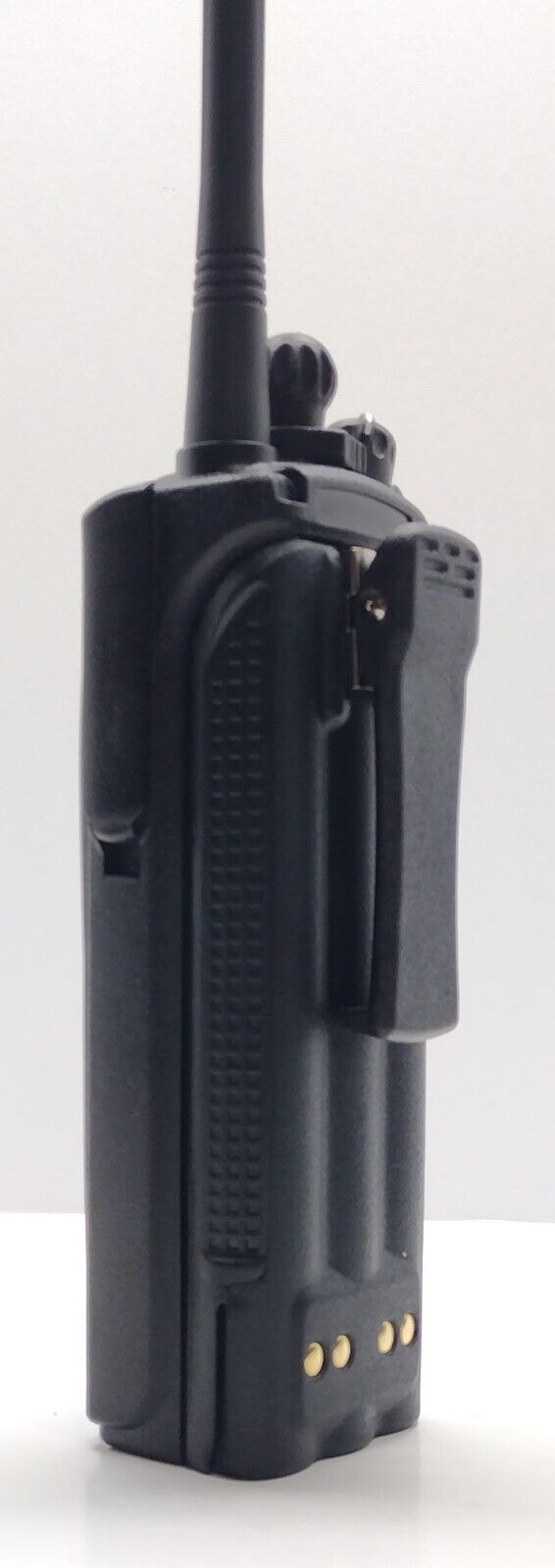

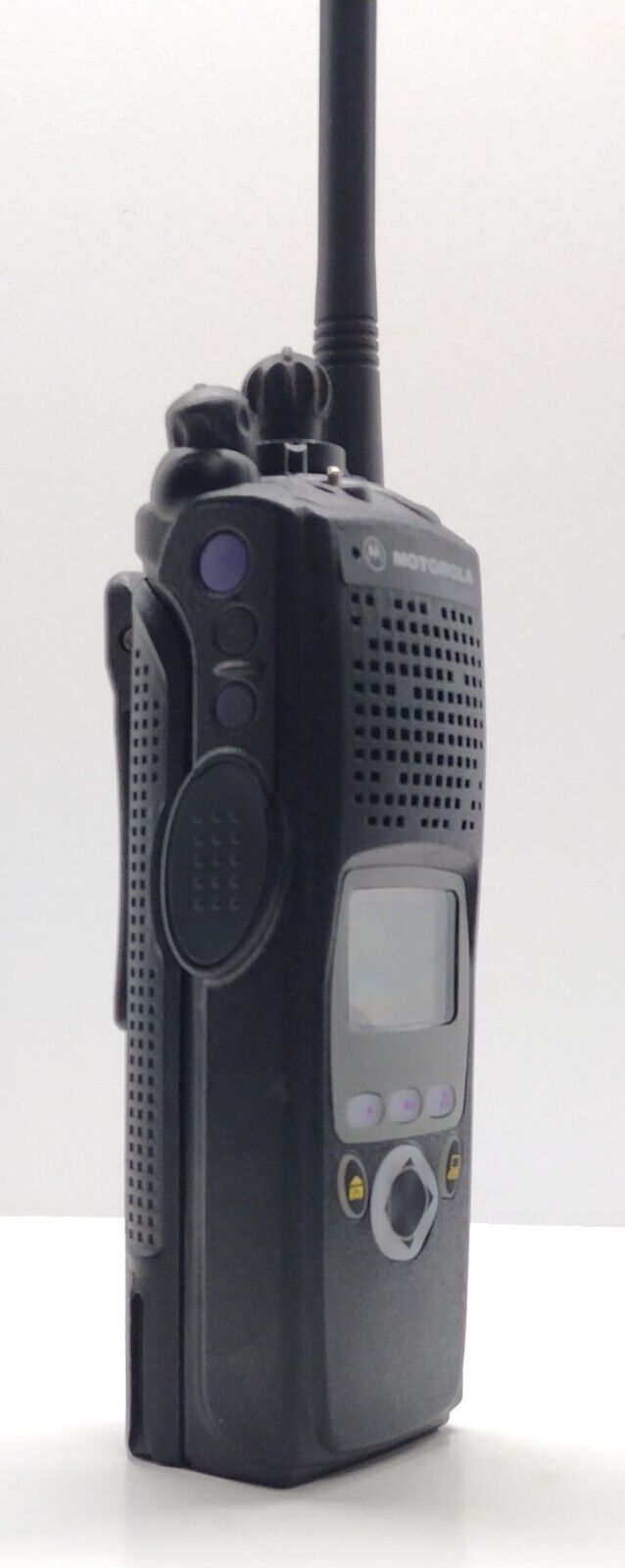

Looks great! Works great! NEW ACCESORIES ****SEE PICTURES****

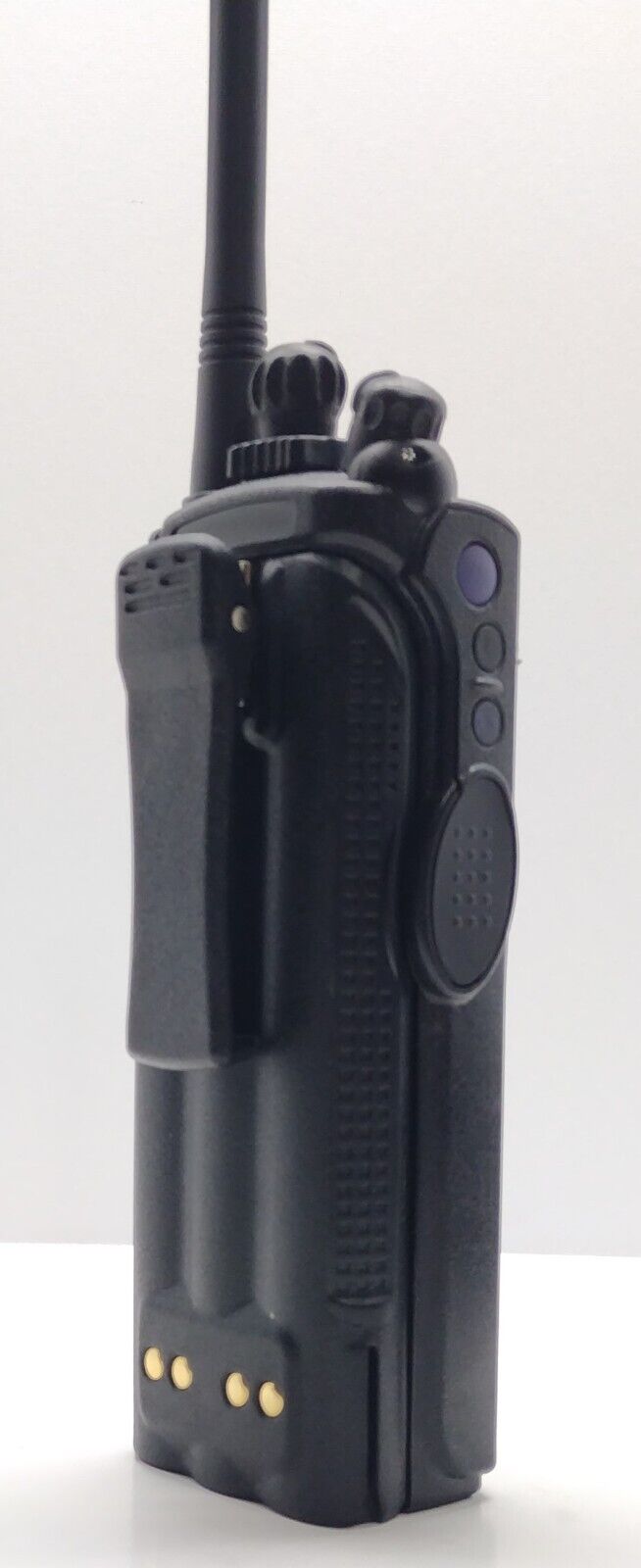

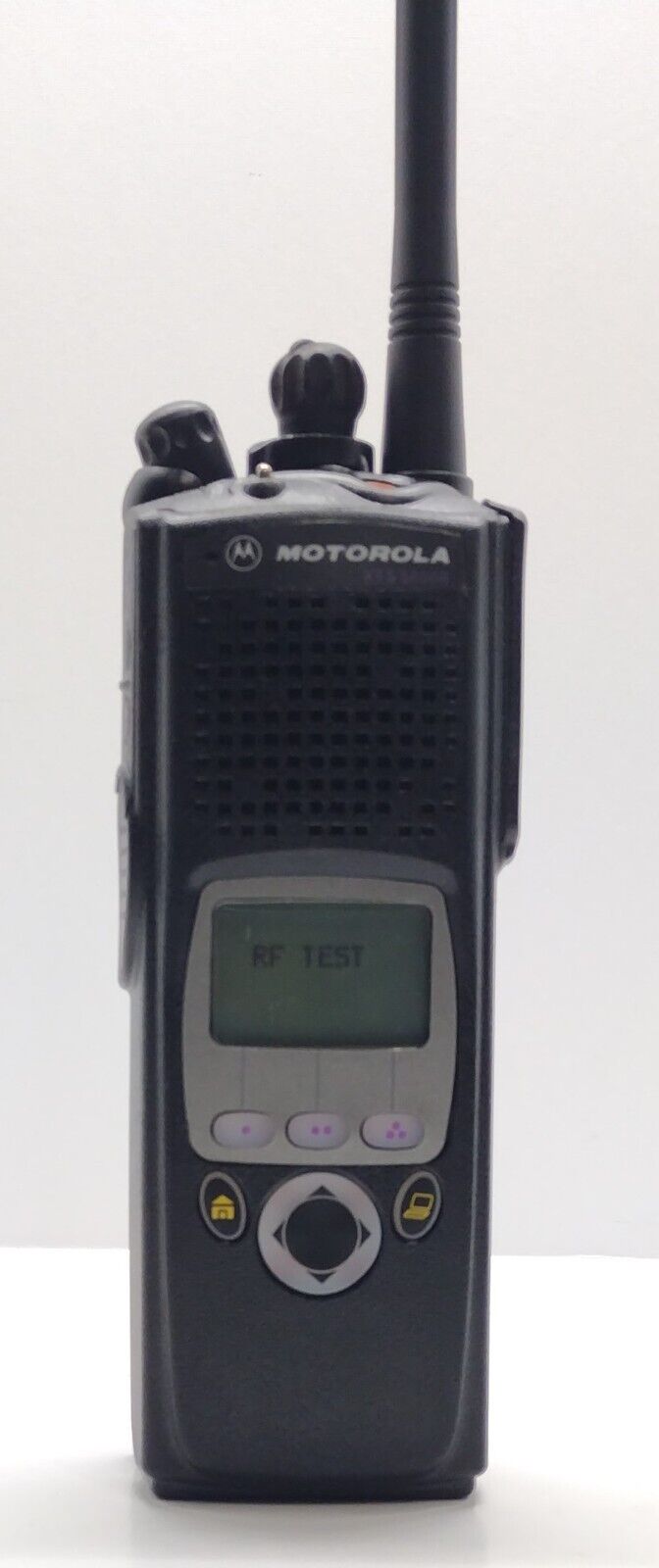

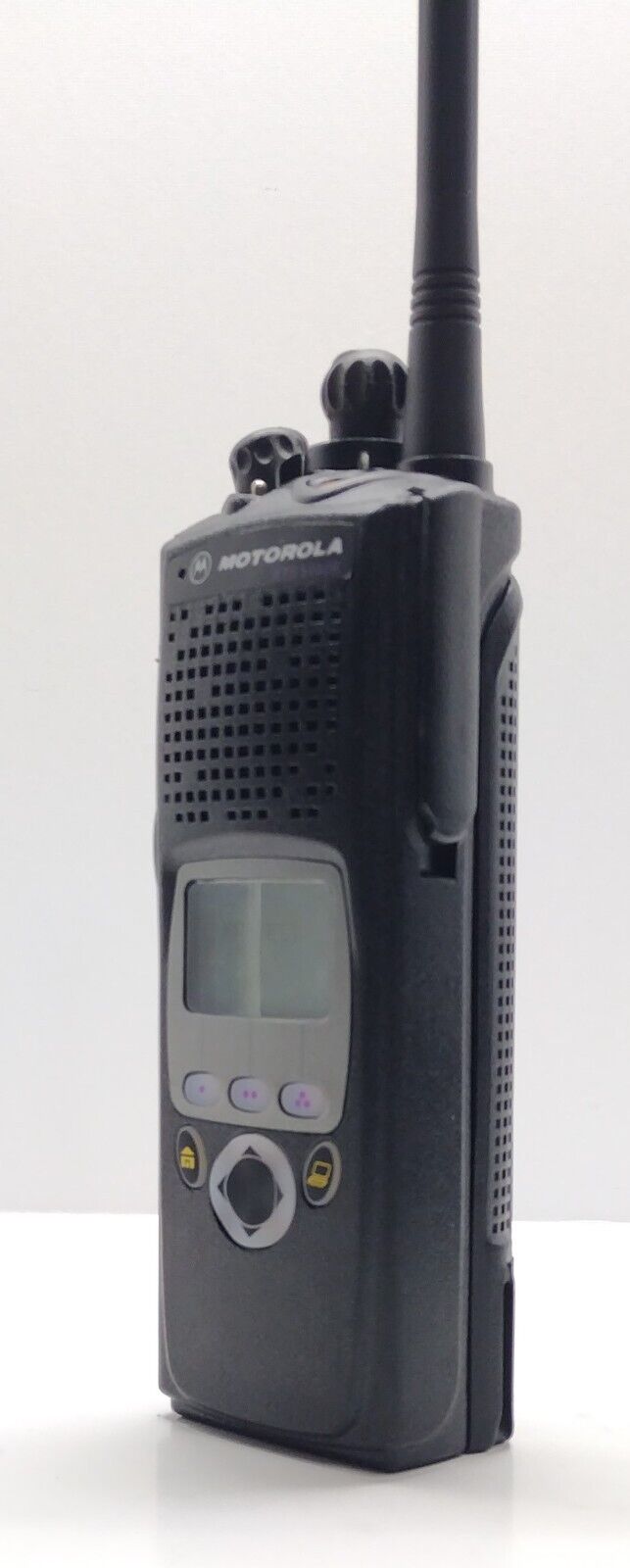

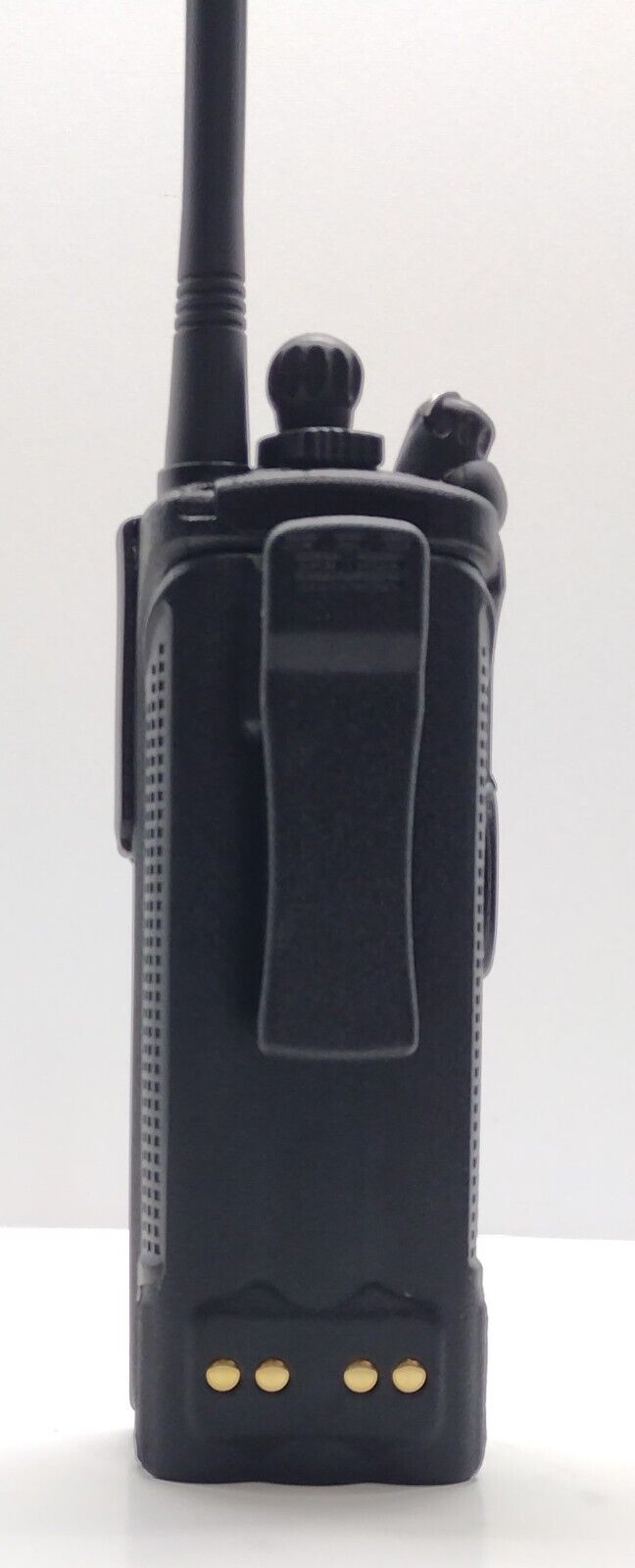

Motorola XTS 5000 VHF 136 174 MHz Digital P25 SmartZone Radio H18KEF9PW6AN
This unit has a new housing and the latest firmware, works great, see pictures.

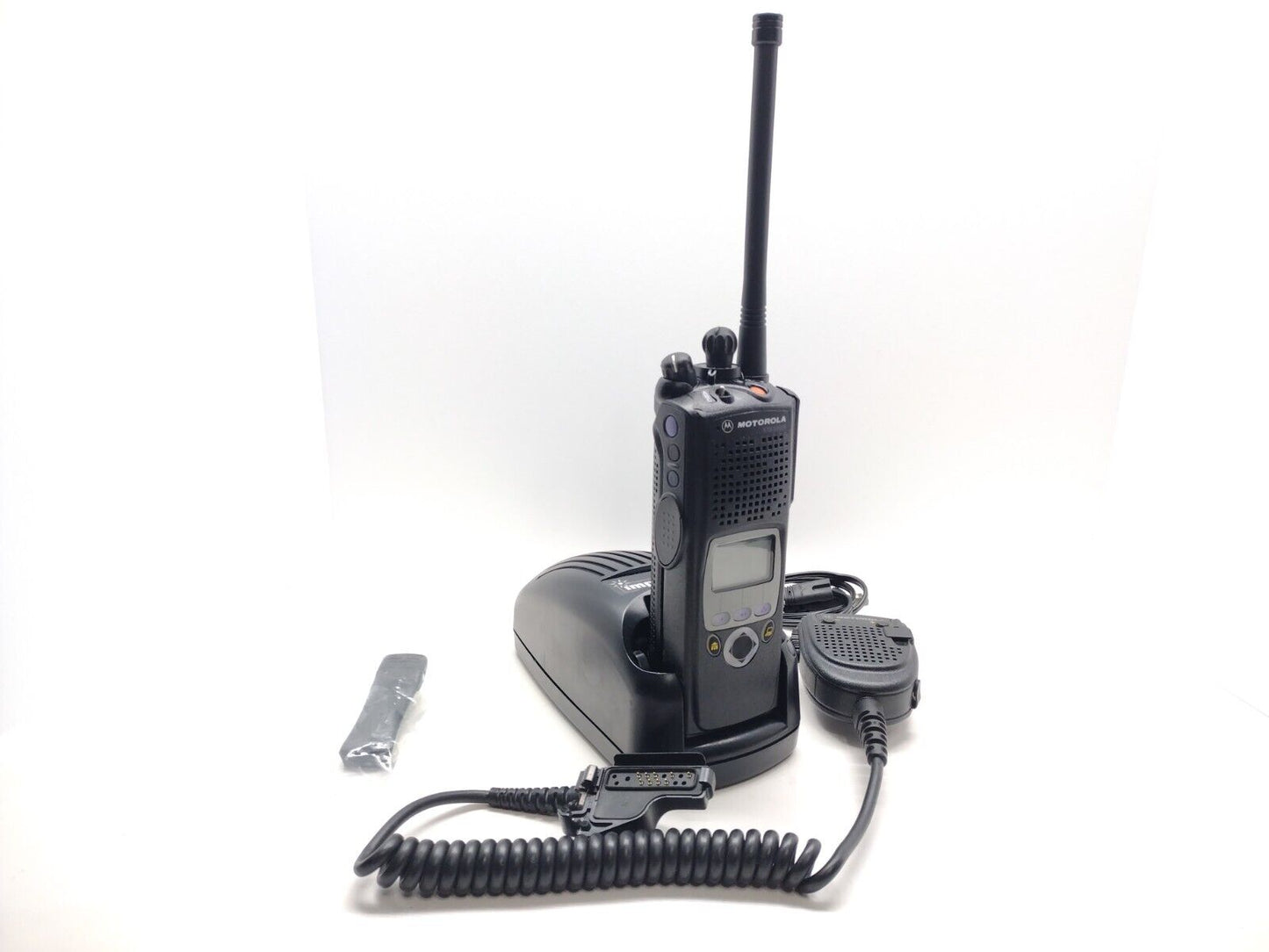

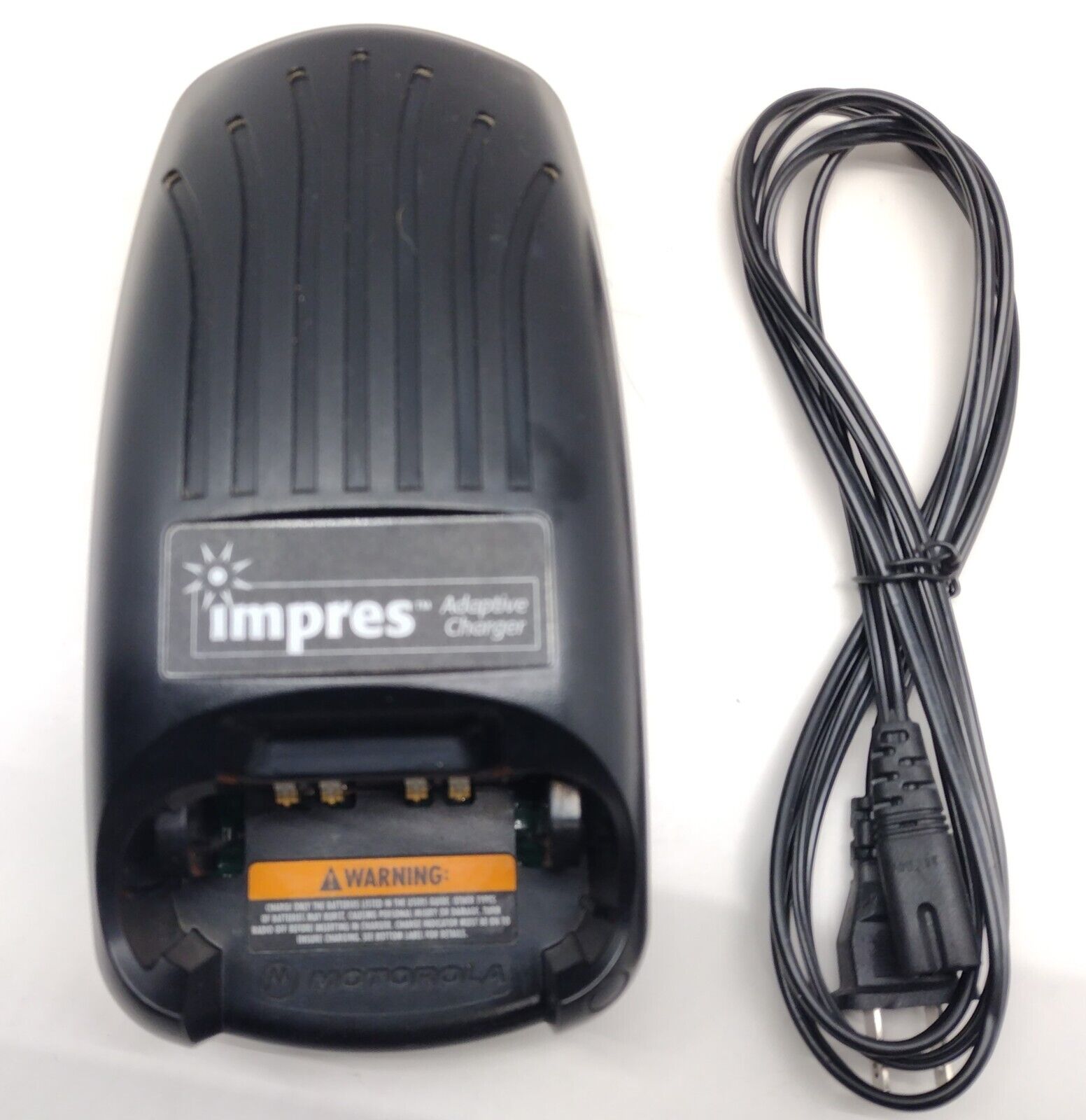

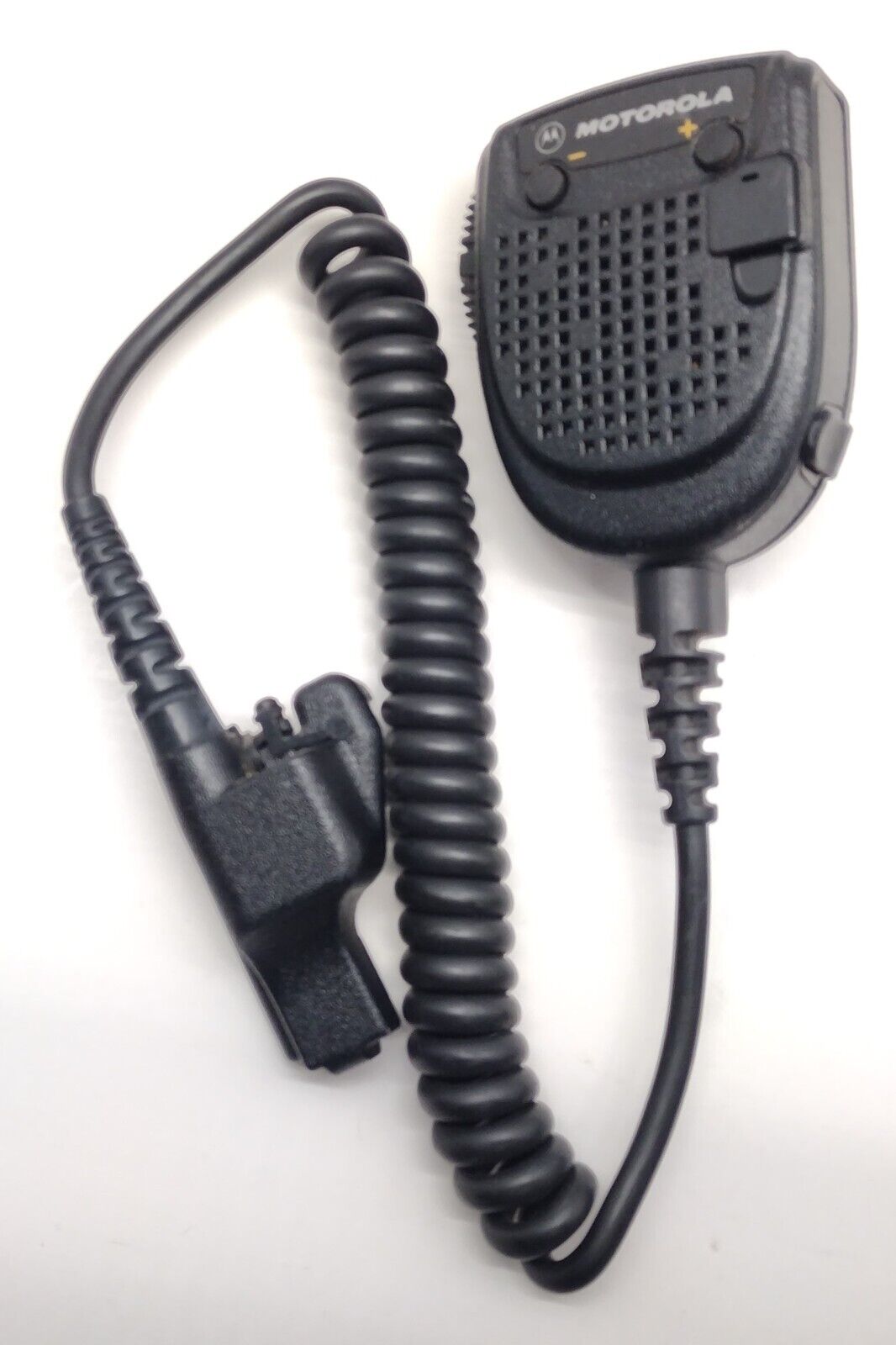

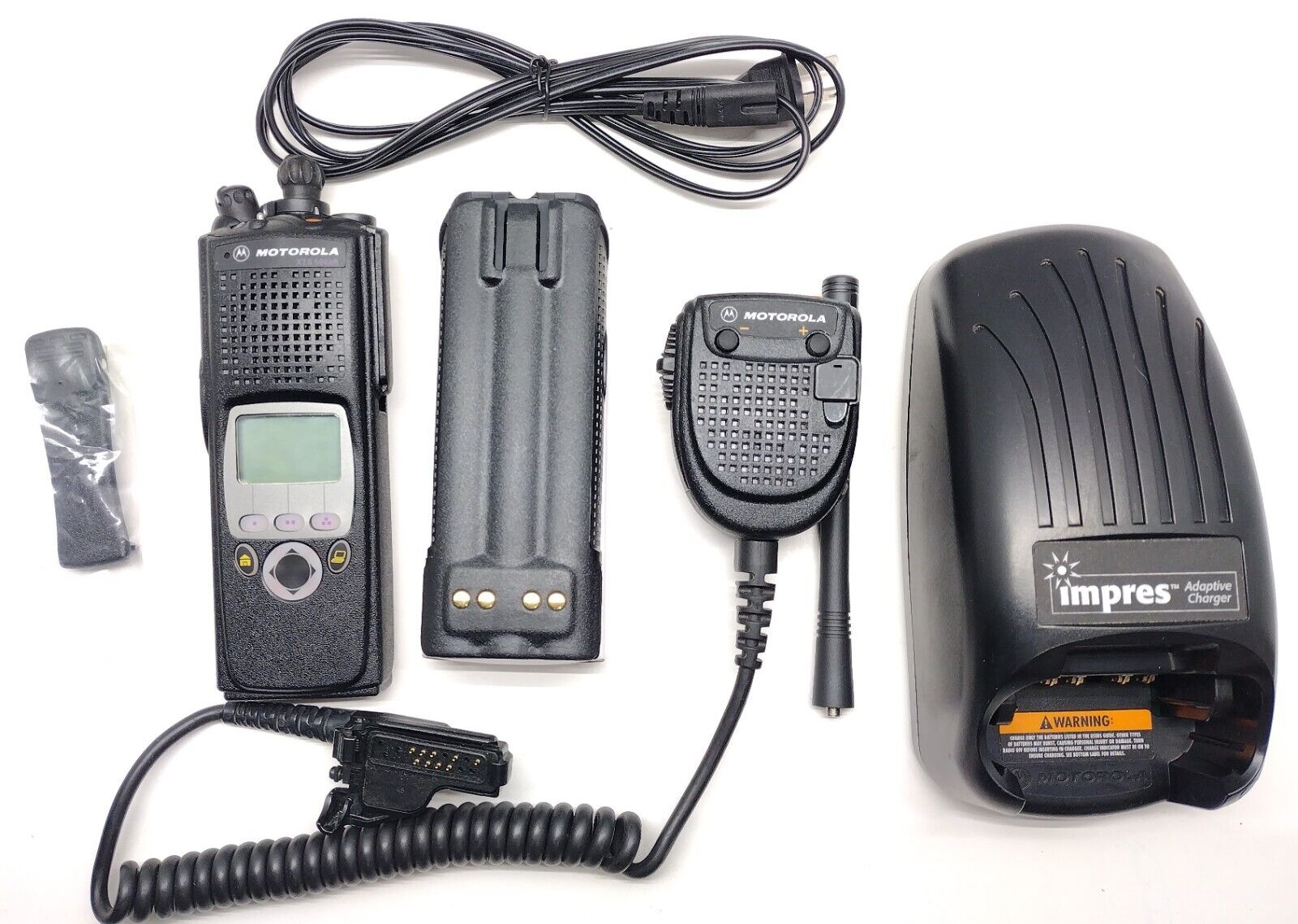

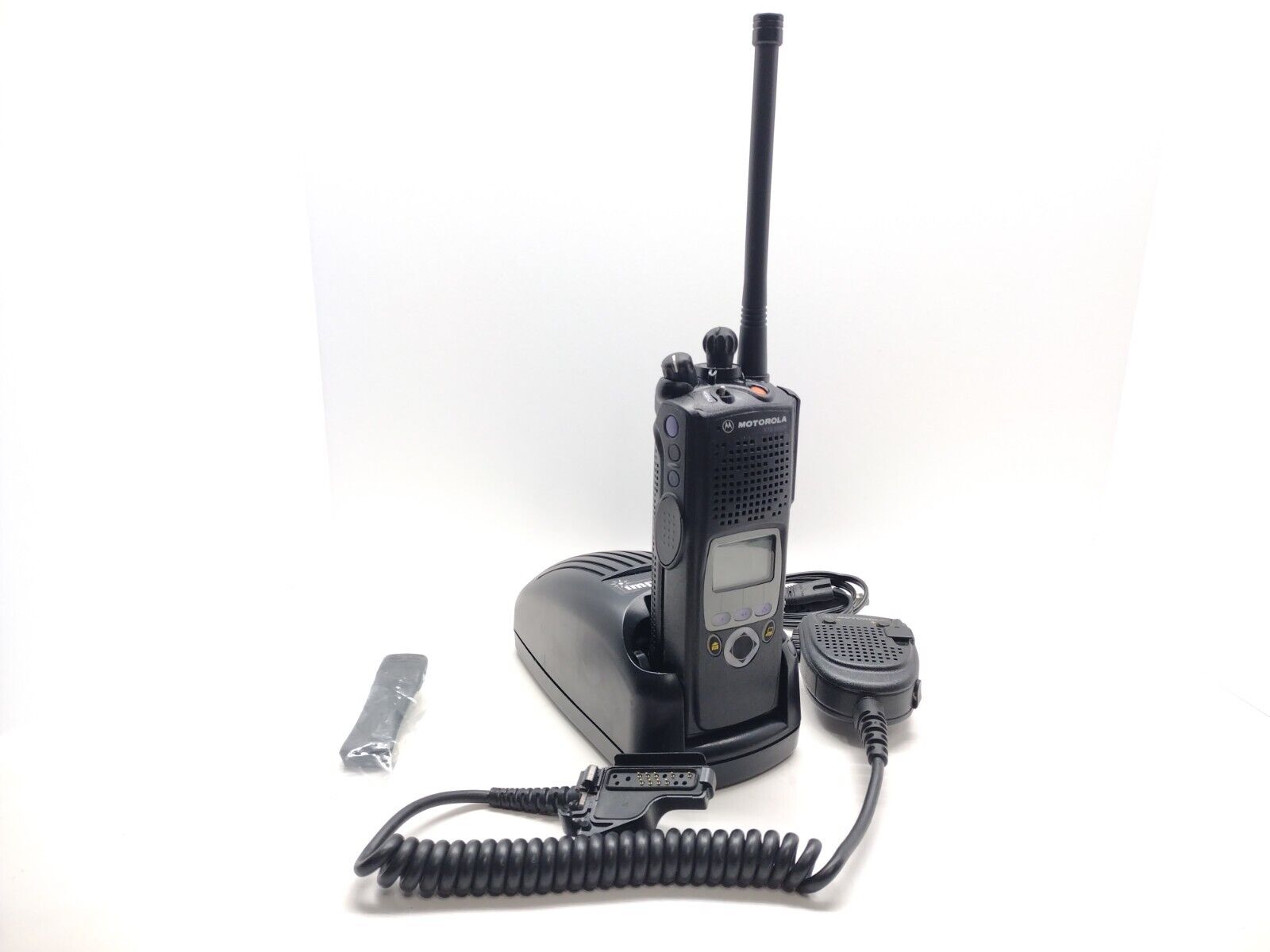

Includes radio, New 3800 mah after market battery, Impres desktop charger, commander mic, belt clip, and antenna.
I can send a link for CPS the programming software if needed.
There are no advanced system keys installed.

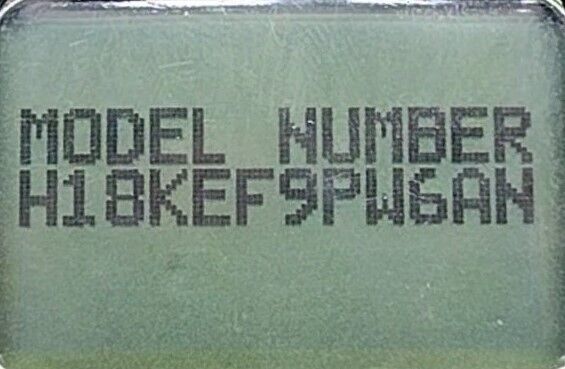

Model H18KEF9PW6AN

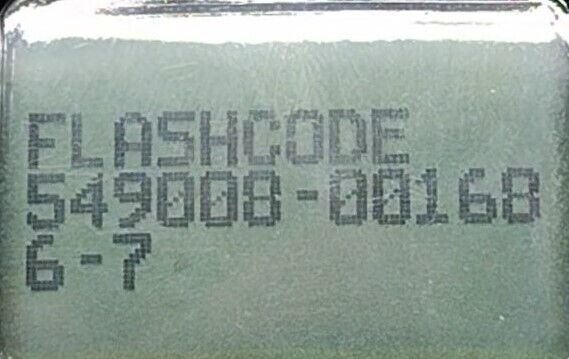

Flashcode 549008-001686-7
Firmware: R20.50.09

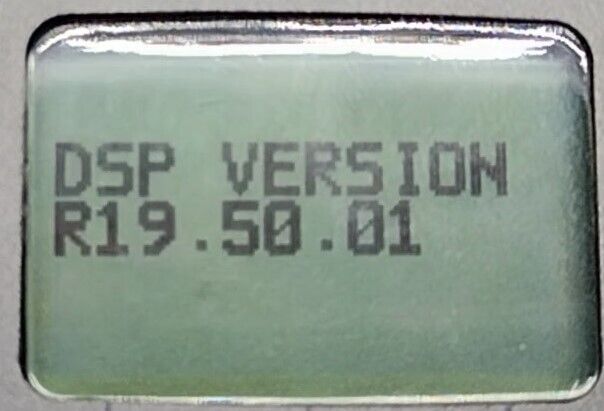

DSP: R19.50.01
Tuning: R01.09.07
PSDT: R04.00.00
Bootloader: R03.50.00
Trunking standards supported: clear or digital encrypted APCO P16 and APCO P25
SmartZone, SmartZone Omnilink, SmartNet, Conventional System Configurations and ASTRO 25 Trunked Operation
Narrow and wide bandwidth digital receiver (12.5 kHz / 25 kHz)
Embedded digital signaling (ASTRO & ASTRO 25)
- VHF 136-174 MHz
- Intrinsically Safe

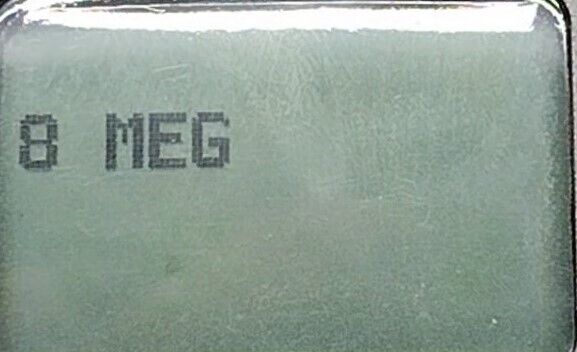

- FLASHport Memory: 8MB
- 1000 channels
- Limited Keypad
- Channel Spacing: 12.5 / 25 kHz
- Maximum Frequency Separation: Full Bandsplit
- Rated RF Output Power: 1 to 6 W
Flashcode 549008-001686-7
| D1 B1 | Q806 ASTRO IMBE Digital Operation | |
| D1 B3 | H14 Enhanced Digital ID Display | |
| D2 B3 | H869 Hardware Multikey Encryption | |
| D3 B1 | H43 Trunked Remote Monitor/Radio Trace | |
| D3 B4 | H46 Trunked One Touch Status Message | |
| D6 B4 | H38 SmartZone Systems Operation | |
| D9 B1 |
Q947
APCO Packet Data Interface |
|
| D10 B2 | Q387 Conventional Voting Scan | |
| D10 B3 |
Q173
SmartZone Omnilink MultiZone Operation |
|
| D11 B4 |
Q361 ASTRO 25 9600 Baud Trunking |
|
| D12 B2 | Q446 Fireground Voice/Channel Announcement | |
| D12 B3 |
Q667

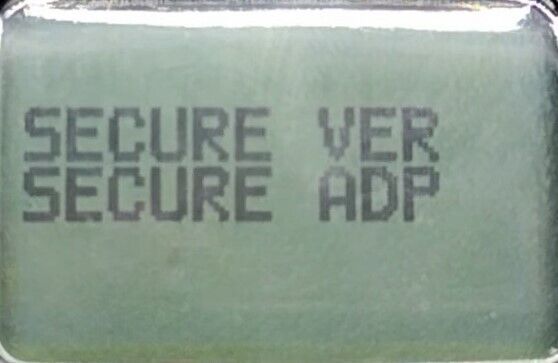

ADP Software Encryption |
|
|
| ||
